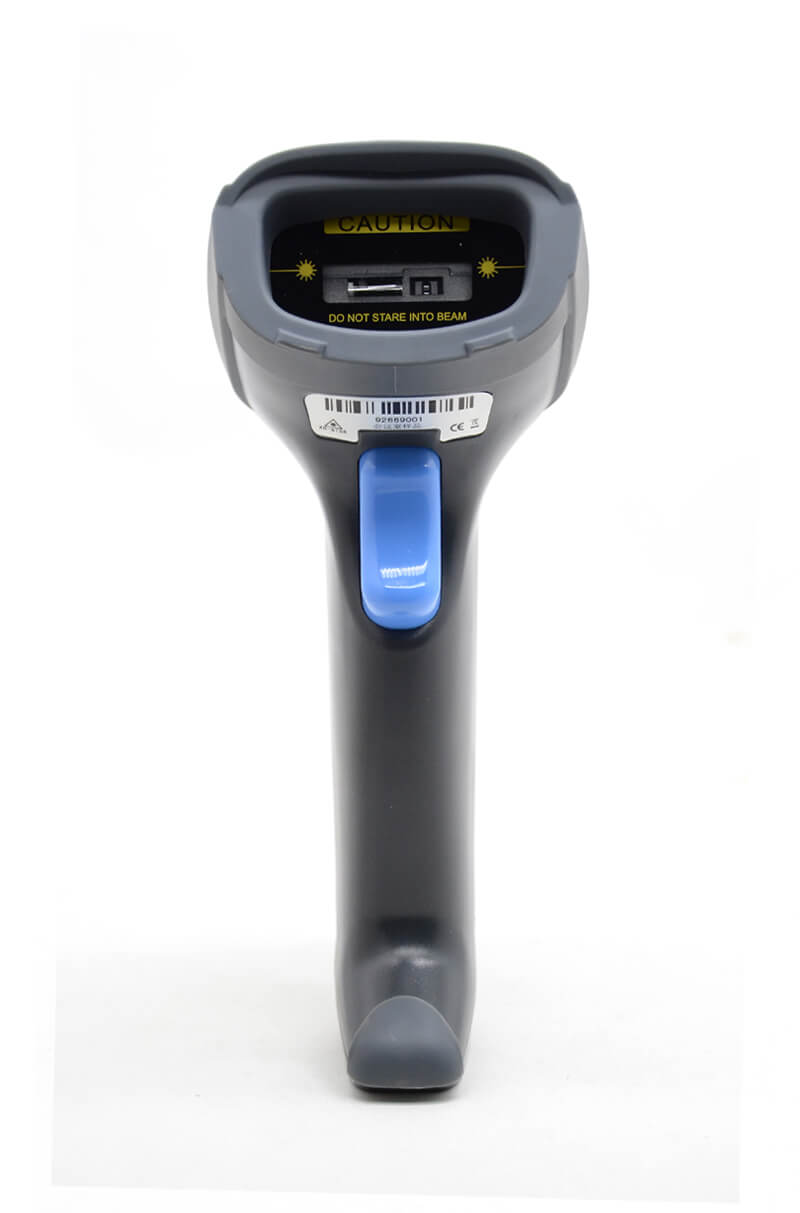

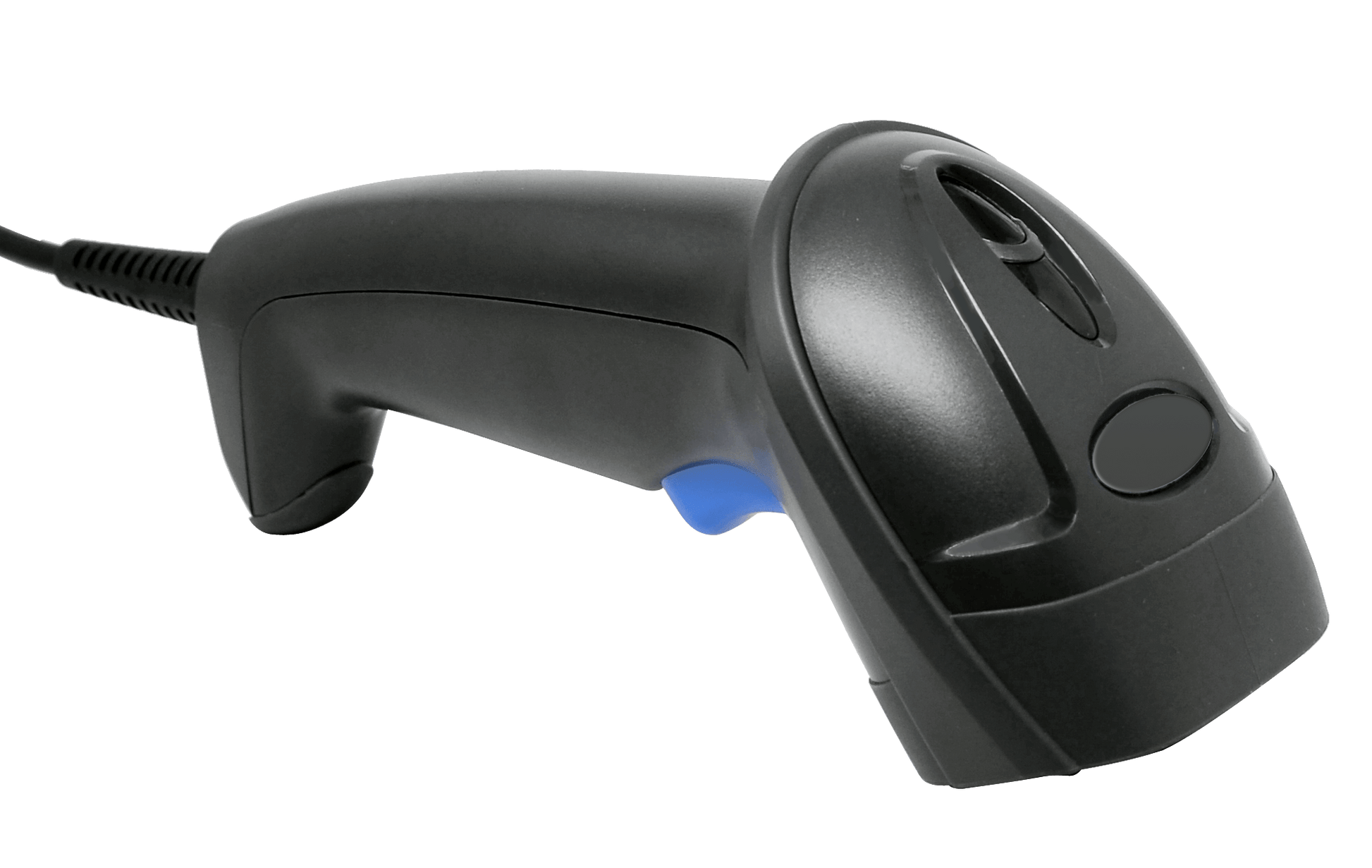

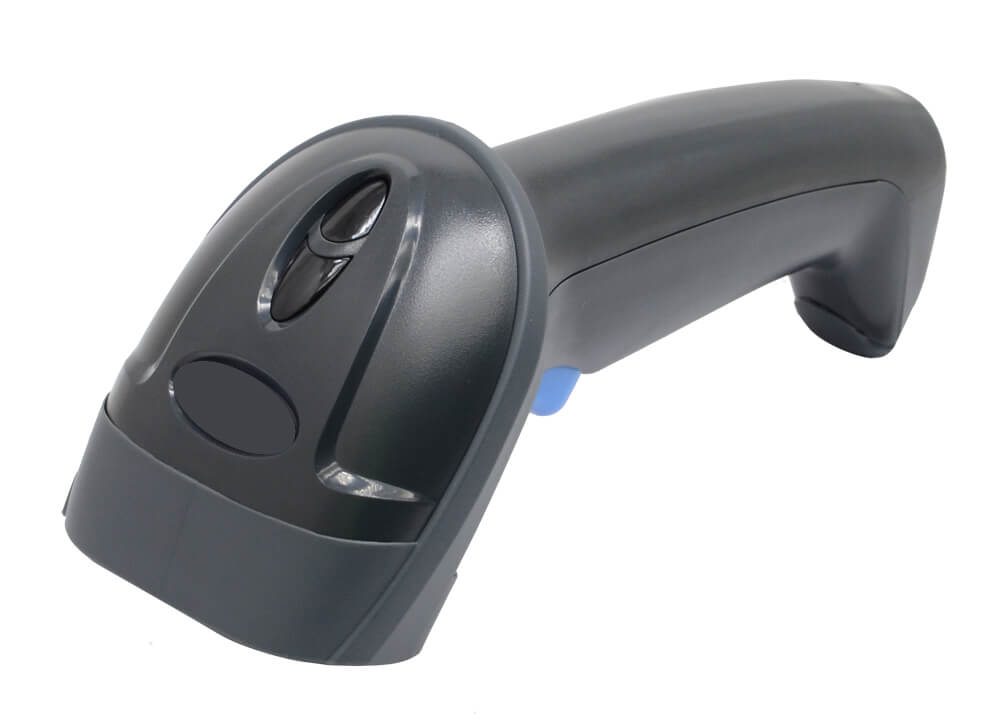

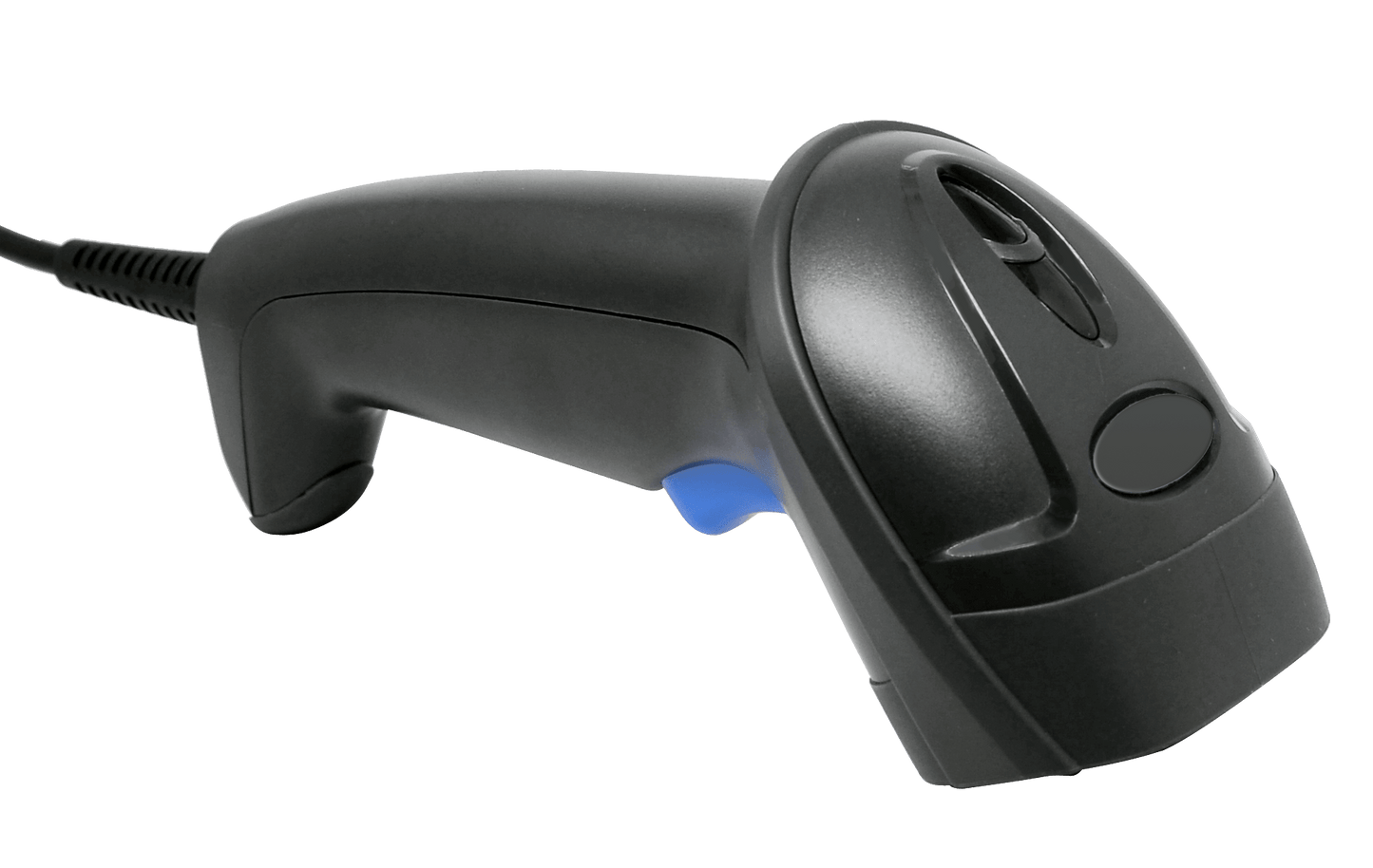

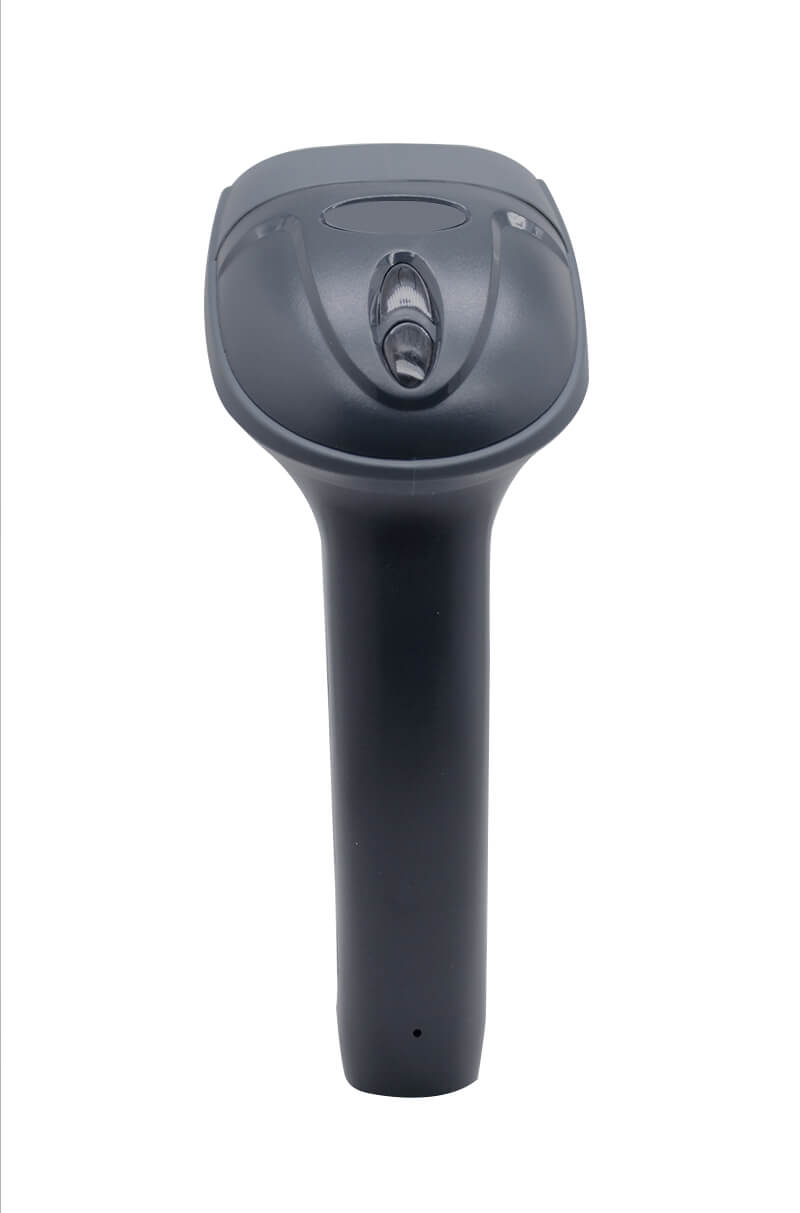

NBBS-S10D Handheld 1D Laser Bar Code Reader Barcode Scanner
| Specification | Details |
|---|---|
| General Information | |
| Model | NBBS-S10D |
| Material | ABS + PVC + PC |
| Language | Multiple languages |
| Interface |
USB RS232
|
| Trigger Mode |
Manual Continuous scanning
|
| Operating Current |
Operating: 50mA
Stand By: 40mA
Maximum: 100mA
|
| Power Supply | DC 5V ±5% |
| Quiescent Current | 20mA |
| ESD Protection | 15KV air discharge |
| Shock Resistance | 1.5m free fall on concrete surface |
| Performance | |
| Scan Speed | 200 scans per second |
| Scanning Depth |
2-9cm
0.1mm Width
3-30cm
0.3mm Width
|
| Width of Scan | Min 0.1mm (4mils) |
| Print Contrast | ≥25% |
| Scanning Distance | 10-400mm Roll 60°, Pitch 45°
|
| Light Source | Visible laser 650nm |
| Decode Capability | |
| Physical Characteristics | |
| Casing Size (W × H × D) | 83 × 70 × 172 mm |
| Weight | 112g |
| Environmental Conditions | |
| Operating Temperature & Humidity | 0°C to 45°C, 10% to 80% RH (Non-condensing) |
| Storage Temperature & Humidity | -20°C to 60°C, 10% to 90% RH (Non-condensing) |
