- Sku:

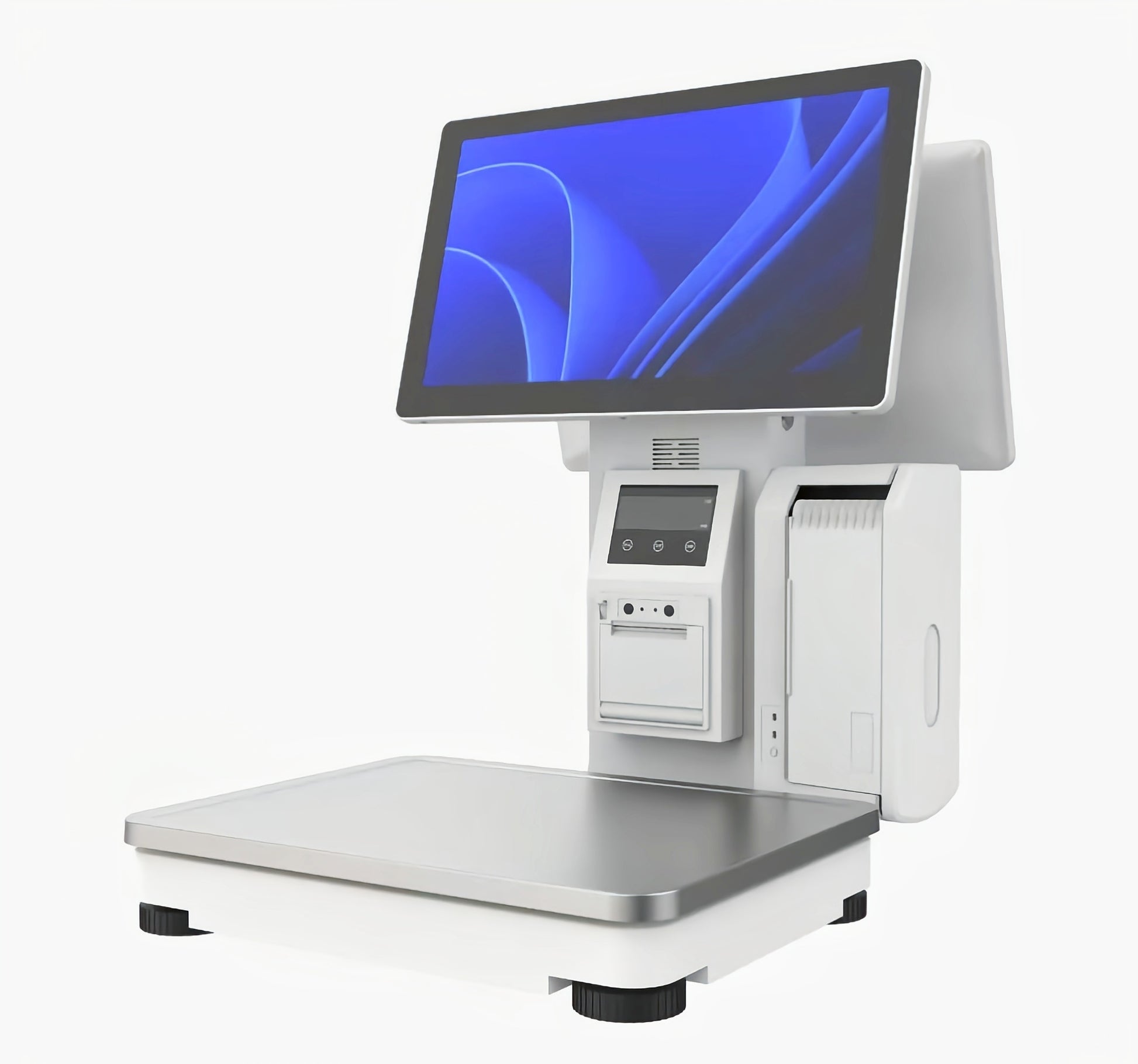

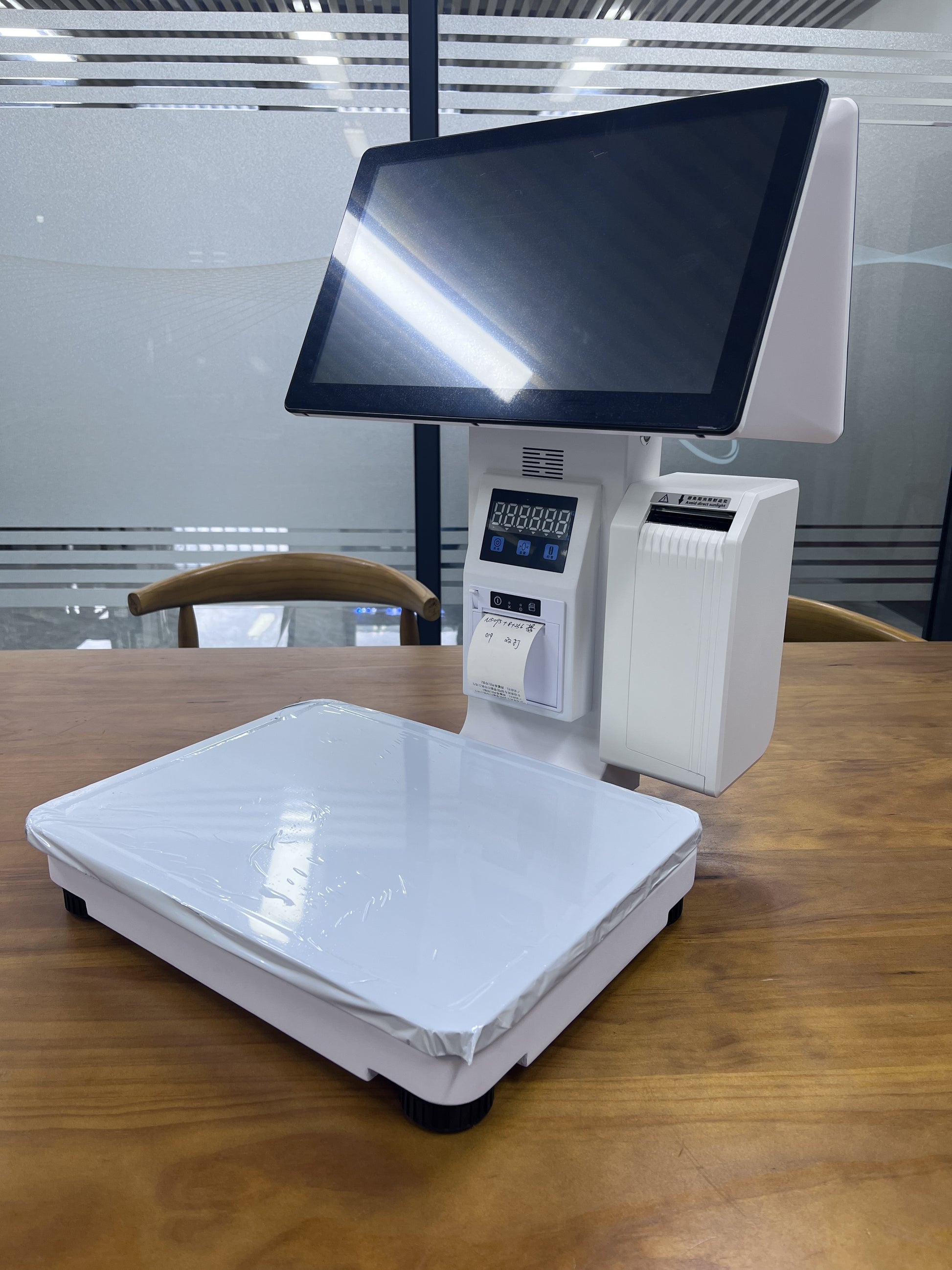

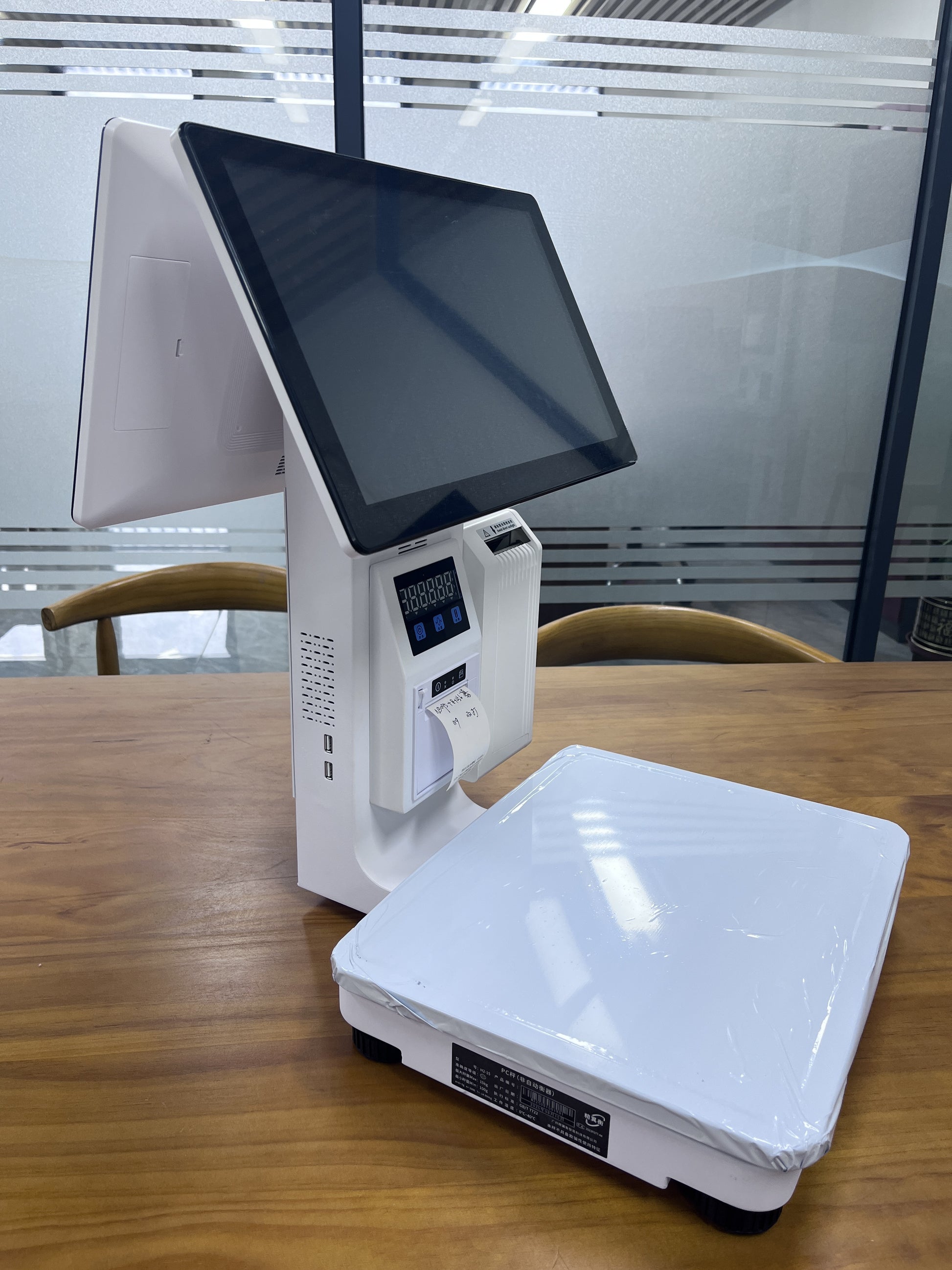

NB-ES8 15.6inch Electronic Weighing Scale built label printer Touch Screen
NB-ES8 support windwows (optional Android) ; Receipt and label printers; Support full screen touch; Support AI auto identification; Support WIFI, Bluetooth, Lan ;Support customized
| Specification | Details |
|---|---|
| System Configuration | |
| Model | NB-ES8 |
|
Operating System & Hardware |
Windows System
CPU: J1900/J4125/i3/i5 (Optional)
DDR: 4GB/6GB/8GB/16GB (Optional)
Storage: 64GB/128GB/256GB/512GB
Android System
CPU: RK3288/RK3566/RK3568 (Optional)
DDR: 2GB/4GB/6GB/8GB (Optional)
Storage: 32GB/64GB/128GB (Optional)
|
| Display Configuration | |
|
Operation Display |
G+G Capacitive Multi-touch Screen
15.6" RGB TFT
1366×768 (1920×1080 Optional)
11.6" RGB TFT
1366×768 / 1920×1080
16:9 Aspect Ratio
Glass Polishing, Waterproof
|
|
Customer Display |
15.6" RGB TFT
1366×768 (1920×1080 Optional)
11.6" RGB TFT
1366×768 / 1920×1080
8 Segment LED
Price/Total/Collect/Change Display
|
| Communication & AI Features | |
|
Communication Modules |
SIM Card Support
Meet almost all telecom operator standards
4G/3G/2G Modules OPTIONAL
4G TDD-LTE, FDD-LTE, 3G TD-SCDMA, WCDMA, CDMA EVDO, 2G CDMA, GSM
WiFi Module OPTIONAL
2.4G IEEE802.11b/g/n compatible with WAPI
Bluetooth OPTIONAL
Support 2.0+EDR, 3.0, 4.0
Ethernet (RJ45)
Support TCP/IP HTTP protocols
|
|
AI Recognition Function |
Self-service photography of goods, system input and weighing of goods identification functions
|
| Peripheral Features | |
|
Weighing Platform |
15KG or 30KG Weighing Table (Optional)
|
|
Printer |
High Ticket & Label Paper
Printer Type
58mm Paper Width
Up to 5cm/s Printing Speed
Text, Image, Barcode
Customizable Size & Font
|
|
Multi-media Function |
High Efficiency DSP
Support MP3, MP4 (4K)
Picture Play
Up to 8000×8000 Pixel
|
| External Interfaces | |
|
Interface Configuration |
2× USB 3.0
On Plate
2× USB 2.0
In Side
1× RS232
DB9, 5V 1A Output
1× RJ45
Ethernet
2× RJ11
Password Keypad
1× Earphone
Audio Port
1× DC Power
12V, 4A
* Interfaces may vary for different product batch, OEM available
|
| Accessories & Environmental | |
|
Accessories |
DC Power Adaptor: Input 100-240V, Output 12V, 4/7A |
|
Package Information |
590×450×690 mm
Carton Size
20 kg
Weight
|
|
Environmental Specifications |
-10℃ ~ 50℃
Working Temperature
-40℃ ~ 80℃
Storage Temperature
95% RH
Humidity (Non-condensing)
|
Have a question?
FAQ
We are based in Gguangdong, China, start from 2020,sell to Western Europe(30.00%),Eastern Europe(20.00%),North America(10.00%),South America(10.00%).
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Of course, we hope you can order a sample to test the quality before ordering in bulk, which is safer for both of us, because you can try the product yourself and see if it meets your requirements.
We will try our best to offer 24/7 after sales service about our products.
Yes, we have a one-year warranty. If the whole product is defective and can't be used, we will send relevant accessories to you in your next order.
