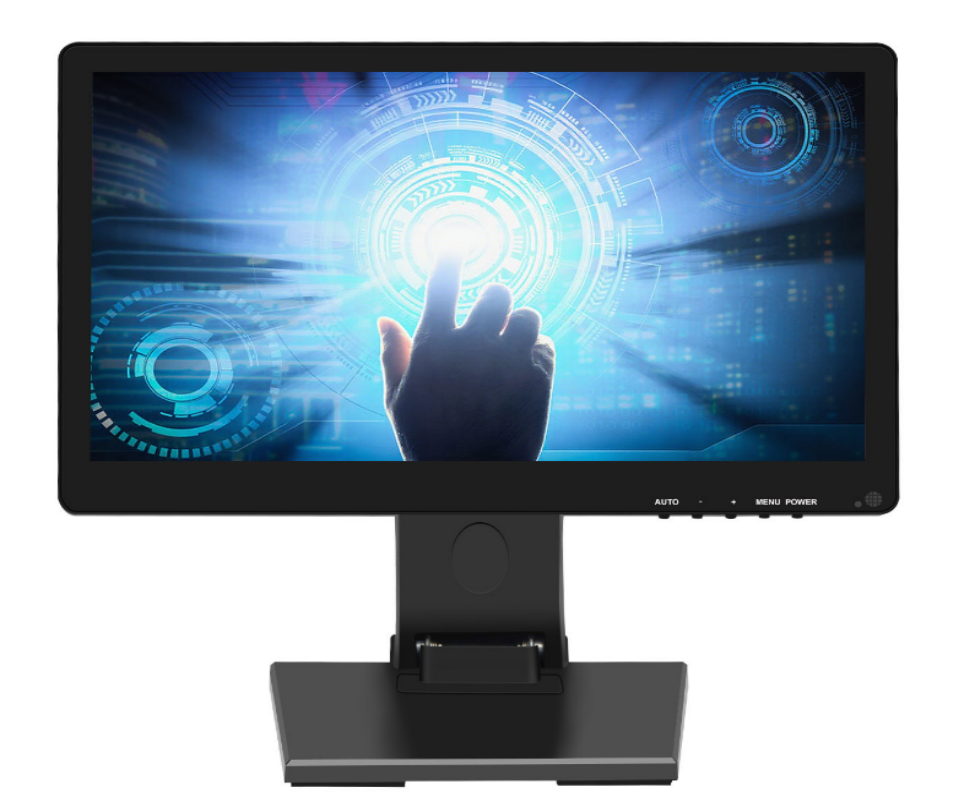

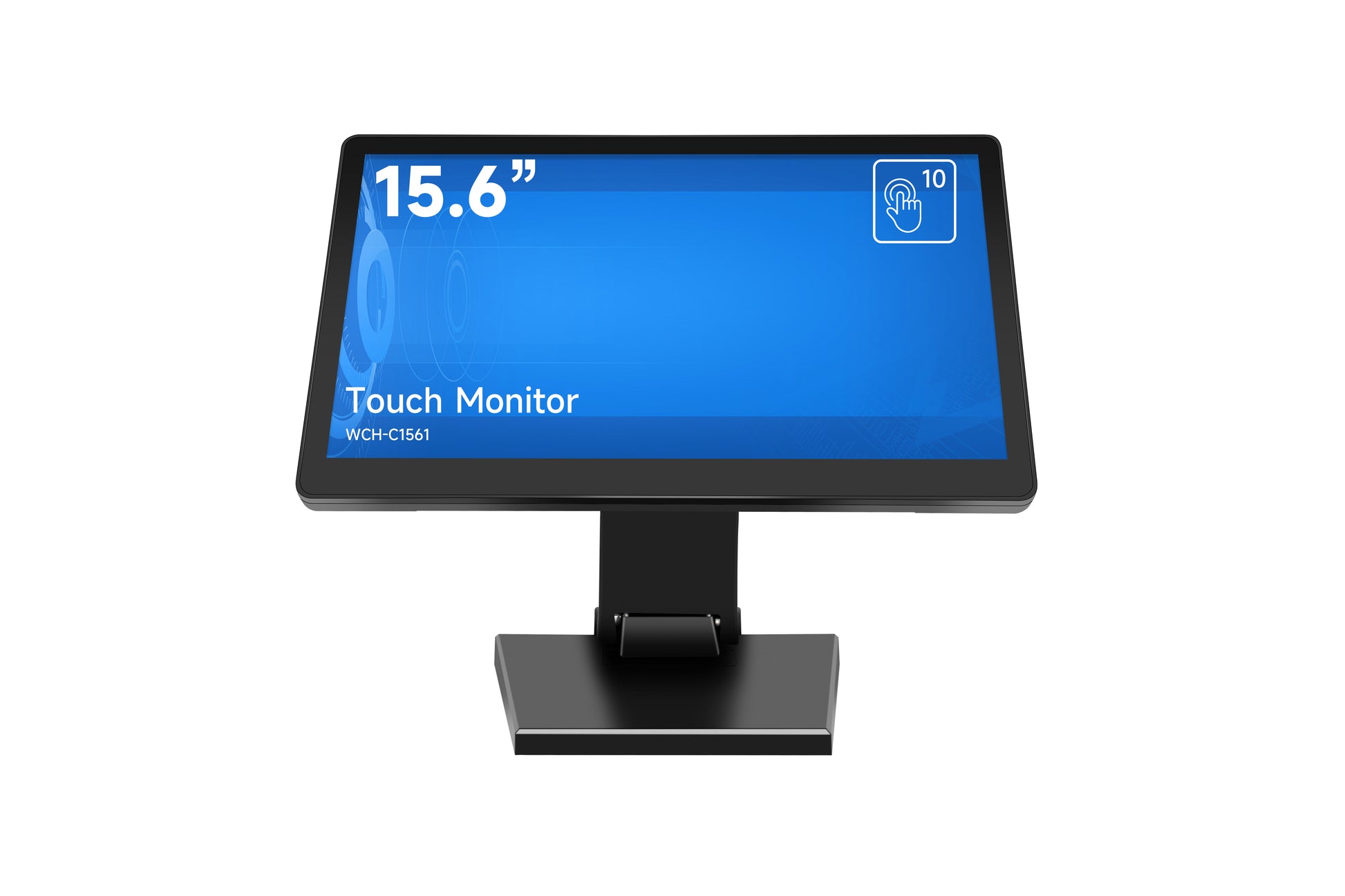

TM-1506A 15.6-inch Capacitive Touch Screen POS LED Monitor
| Specification | Details |
|---|---|
| General Information | |
| Model | TM-1506A |
| Name | 15.6 inch Capacitive Touch Screen Monitor |
| Color | Whole black color machine |
| Material | Metal base with plastic machine body |

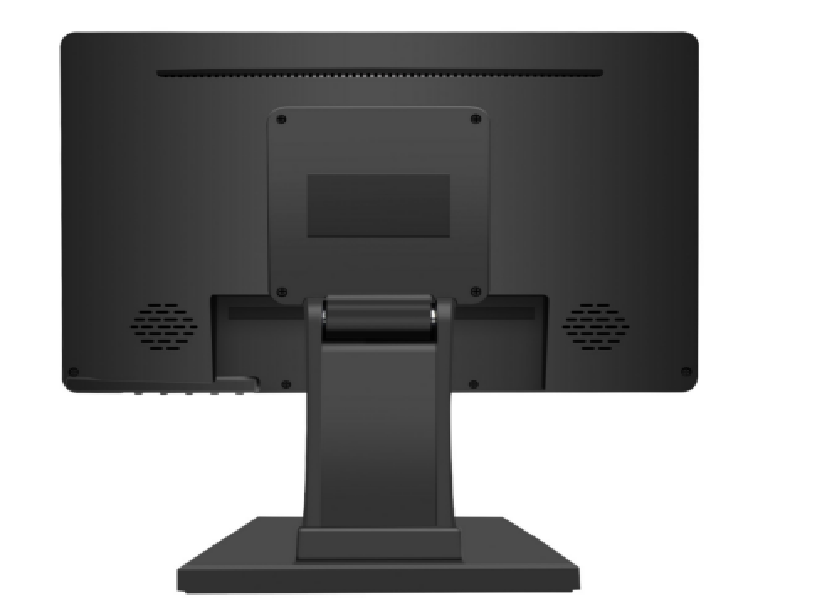

| VESA Mount | 75×75mm for wall mounting (need extra wall mounting bracket) |
| OSD Language | Support 8 kinds of international languages |
| Display Specifications | |
| Display Area | 304.128(H) × 228.096(V) mm |
| Pixel Pitch | 0.297 × 0.297 mm |
| Aspect Ratio | 16:9 |
| Resolution | 1920 × 1080 |
| Brightness | 250 cd/m² |
| Contrast | 700:1 |
| Display Color | 262K, 45% NTSC |
| View Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response Time | 5ms |
| Reference System | Win7, Win8, Win10, Raspberry Pi, Android system, Linux system |
| Touch Function | |
| Touch Screen | Multi-point capacitive touch panel |
| Structure | G+G (Cover Glass+LOCA+ITO+Glass) |
| Responding Speed | <5ms |
| Total Light Transmittance | 85% above |
| Touch Life | >50,000,000 times |
| Connectivity | |

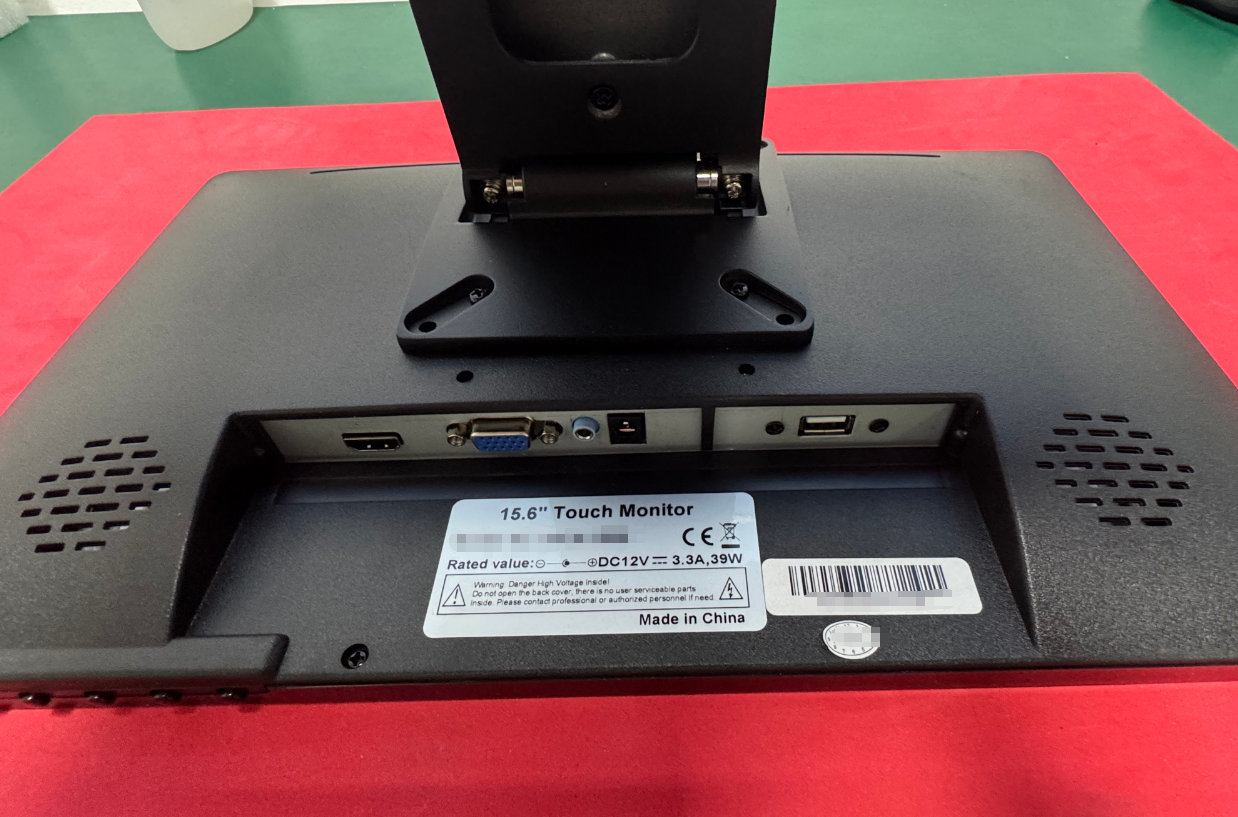

| Rear I/O Ports |
|
| Side Key Function | Auto, Menu, Up, Down, Power Switch |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Working Humidity | 10% ~ 80% RH (No condensation) |
| Storage Humidity | 10% ~ 90% RH (No condensation) |
| Package Information | |
| Package Dimensions | 450 × 160 × 420 mm / 6.5 kg |
| 5 in 1 Carton | 600 × 420 × 430 mm / 23 kg |
| Accessories | |
| Power Adapter | 110-240V/50-60Hz AC power input, DC12V/2.6A output adaptor |
| Cables | Power cord compatible with USA/EU/UK etc and customized available, USB cable for touch, VGA cable (HDMI cable for option) |
| Touch Related | Touch pen |
Have a question?
FAQ
We are based in Gguangdong, China, start from 2020,sell to Western Europe(30.00%),Eastern Europe(20.00%),North America(10.00%),South America(10.00%).
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Of course, we hope you can order a sample to test the quality before ordering in bulk, which is safer for both of us, because you can try the product yourself and see if it meets your requirements.
We will try our best to offer 24/7 after sales service about our products.
Yes, we have a one-year warranty. If the whole product is defective and can't be used, we will send relevant accessories to you in your next order.
