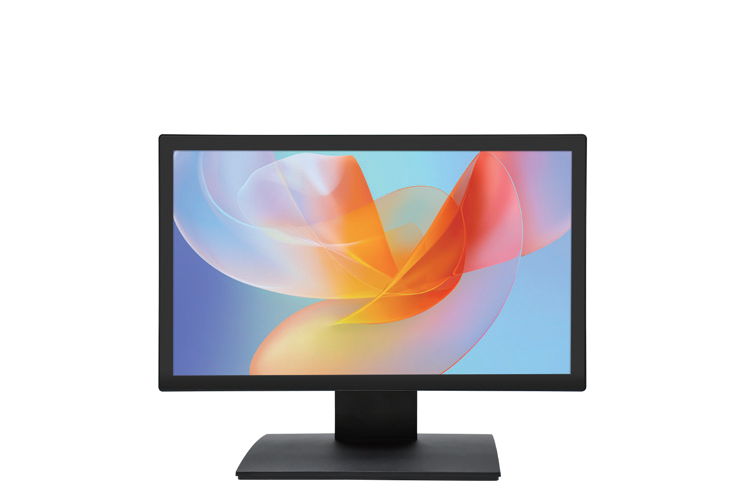

TM-1506B 15.6-inch Capacitive Touch Screen POS LED Monitor
| Specification | Details |
|---|---|
| General Information | |
| Model | TM-1506B |
| Name | 15.6 inch Capacitive Touch Screen Monitor |
| Color | Whole black color machine |
| Material | Metal base with plastic machine body |
| VESA Mount | 75×75mm for wall mounting (need extra wall mounting bracket) |
| OSD Language | Support 8 kinds of international languages |
| Display Specifications | |
| Display Area | 304.128(H) × 228.096(V) mm |
| Pixel Pitch | 0.297 × 0.297 mm |
| Aspect Ratio | 16:9 |
| Resolution | 1920 × 1080 |
| Brightness | 250 cd/m² |
| Contrast | 700:1 |
| Display Color | 262K, 45% NTSC |
| View Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response Time | 5ms |
| Reference System | Win7, Win8, Win10, Raspberry Pi, Android system, Linux system |
| Touch Function | |
| Touch Screen | Multi-point capacitive touch panel |
| Structure | G+G (Cover Glass+LOCA+ITO+Glass) |
| Responding Speed | <5ms |
| Total Light Transmittance | 85% above |
| Touch Life | >50,000,000 times |
| Connectivity | |
| Rear I/O Ports |
|
| Side Key Function | Auto, Menu, Up, Down, Power Switch |
| Environmental Conditions | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Working Humidity | 10% ~ 80% RH (No condensation) |
| Storage Humidity | 10% ~ 90% RH (No condensation) |
| Package Information | |
| Package Dimensions | 450 × 160 × 420 mm / 6.5 kg |
| 5 in 1 Carton | 600 × 420 × 430 mm / 23 kg |
| Accessories | |
| Power Adapter | 110-240V/50-60Hz AC power input, DC12V/2.6A output adaptor |
| Cables | Power cord compatible with USA/EU/UK etc and customized available, USB cable for touch, VGA cable (HDMI cable for option) |
| Touch Related | Touch pen |
