- Sku:

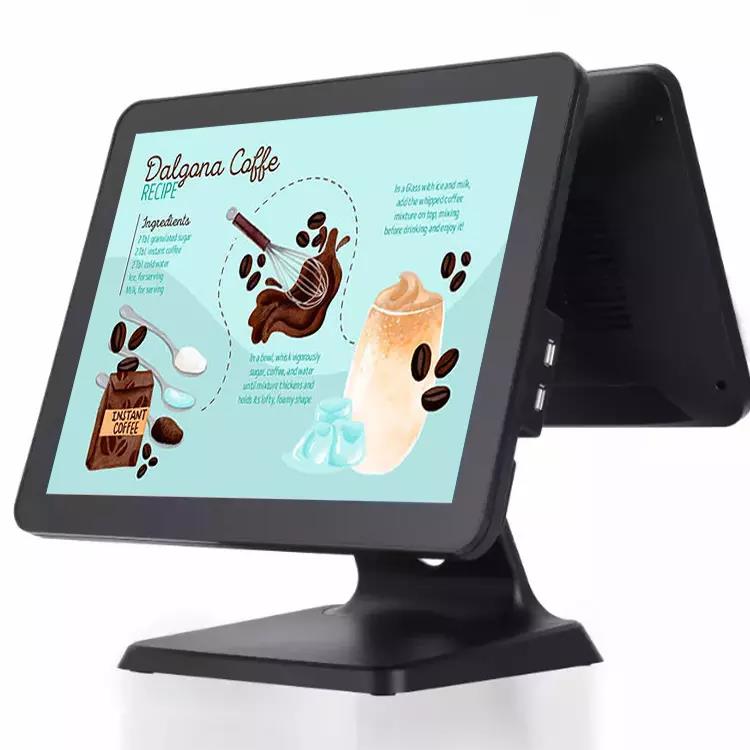

NB-POS420 15.1-inch Windows Touch Screen POS Terminal with Aluminium Alloy Base
NETBYE POS terminal features an aluminum alloy base and is equipped with Intel Celeron and Intel Core processors. This series offers optional CPUs and easy access to I/O ports for connecting external devices such as thermal printers, label printers, and portable USB disks. Furthermore, maintenance is extremely convenient; simply remove the back cover.
It easily connects to external accessories such as cash drawers, receipt printers, and card readers, creating a convenient checkout experience for your customers. It meets the needs of various business scenarios, including point-of-sale, self-service attendance, and membership management. It is also widely used in supermarkets, restaurants, street vendors, hotels, shopping malls, lottery centers, and other similar locations.
| Specification | Details |
|---|---|
| General Information | |
| Model | NB-POS420 |
| Name | 15.1 inch All in One Touch POS Terminal |
| Housing | Plastic shell machine body and aluminium base |
| Color | Whole black color machine |
| Display | |
| Main Screen | 15.1 inch touch screen monitor |
| Resolution | 1024 × 768 |
| Brightness | 250 cd/m² |
| View Angle | Horizon: 150°; Vertical: 140° |

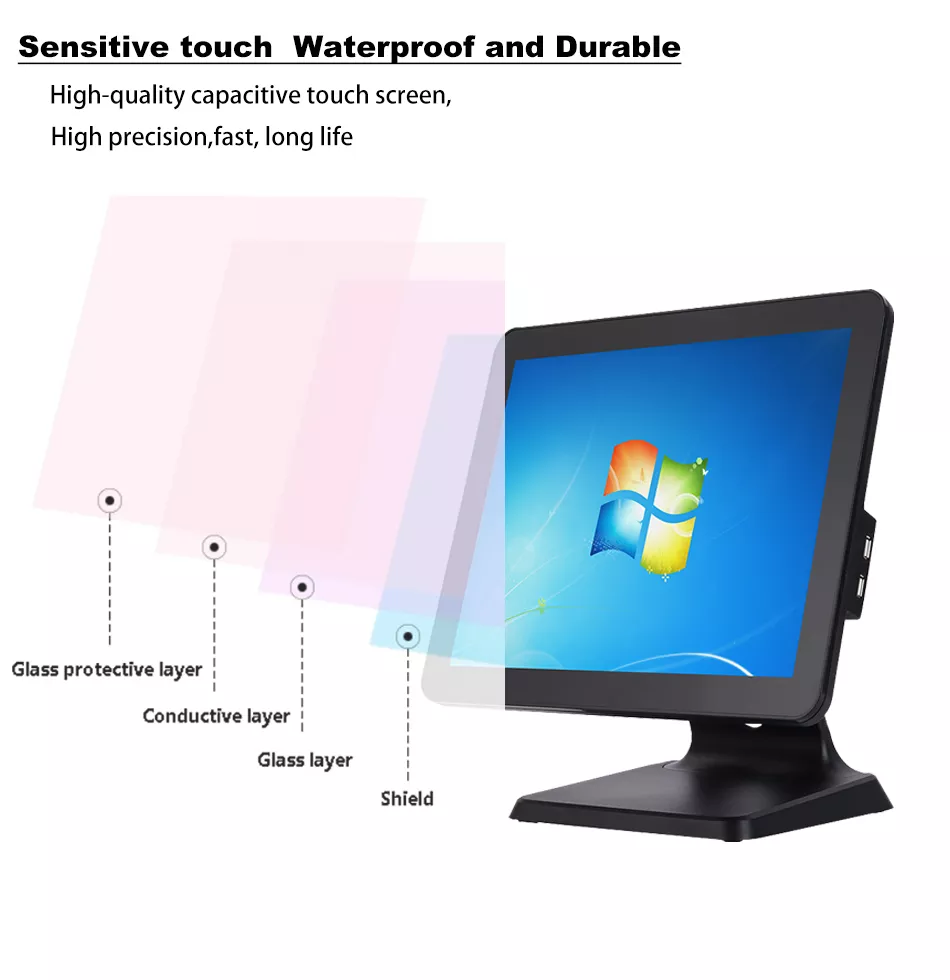

| Touch Screen | Multi-point projected G+G capacitive touch |
| Sub-display | 15.1-inch display or 12.1-inch display W/o touch function for option |
| Customer Display | 2×20 VFD display mounted to back cover for option |
| Performance | |
| Motherboard | Intel Celeron Bay Trail J1900 2.0GHz, or Intel Celeron J1800, Intel Core I3 / I5 / I7 CPU for option |
| System Memory | 1×SO-DIMM DDR4 slot, support 2400MHz, 4GB/8GB for option |
| Storage Device | Msata SSD 64GB or higher, up to 256GB |
| Audio | On board Real Tek ALC662 |
| LAN | 10/100Mbs, Realtek RTL8111F Lan chip |
| Wireless | Built in Mini PCI-E slot, support embedded WIFI module |
| Operating System | Windows 7/8/10, Embedded, WEPOS, Linux |
| Connectivity | |

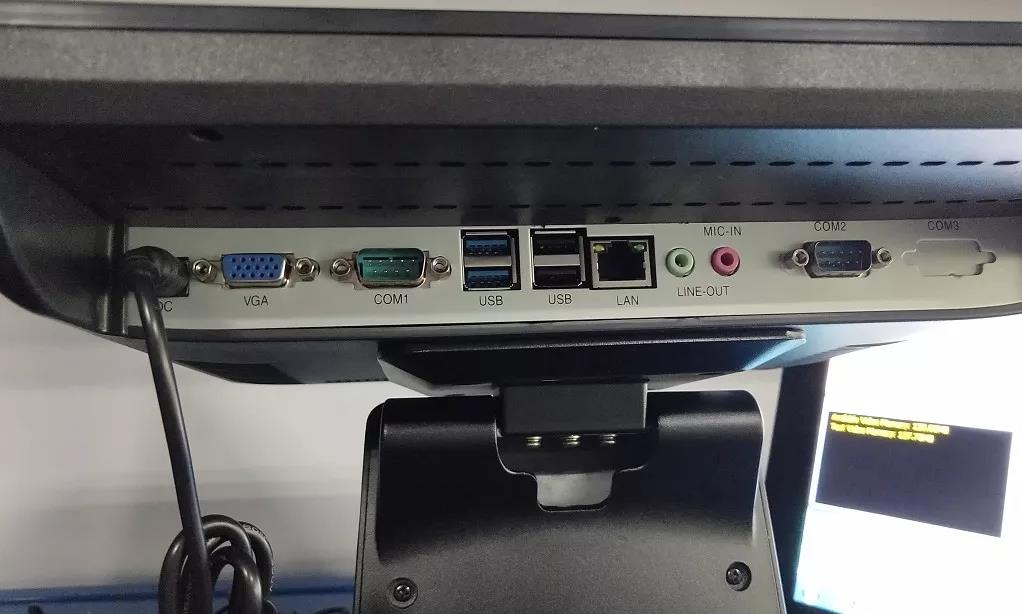

| External I/O Ports |
|
| Options | |
| MSR | Optional side MSR |
| Package | |
| Weight | Net 6.5Kg, Gross 8.0Kg for single screen |
| Package Dimensions | 425 × 275 × 405mm for single screen, 440 × 295 × 425mm for dual screen |
| Environment | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Working Humidity | 10% to 80% RH (Non-condensing) |
| Storage Humidity | 10% to 90% RH (Non-condensing) |
| Accessories | |
| Power Adapter | 200-240V/50-60Hz (default), 110-240V/50-60Hz AC power input, DC12V/5A output adaptor |
| Power Cable | Power cable plug compatible with USA / EU / UK etc and customized available |
