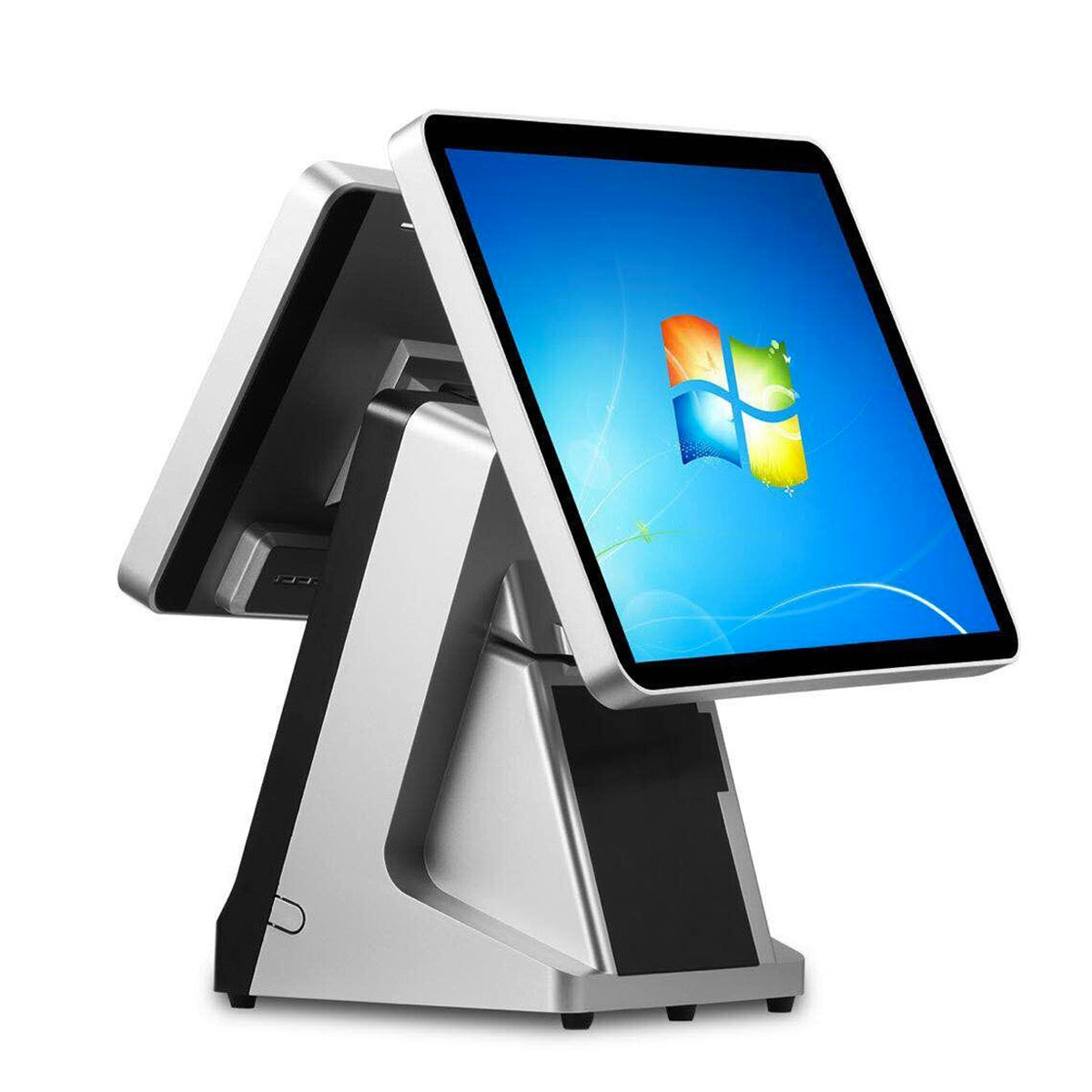

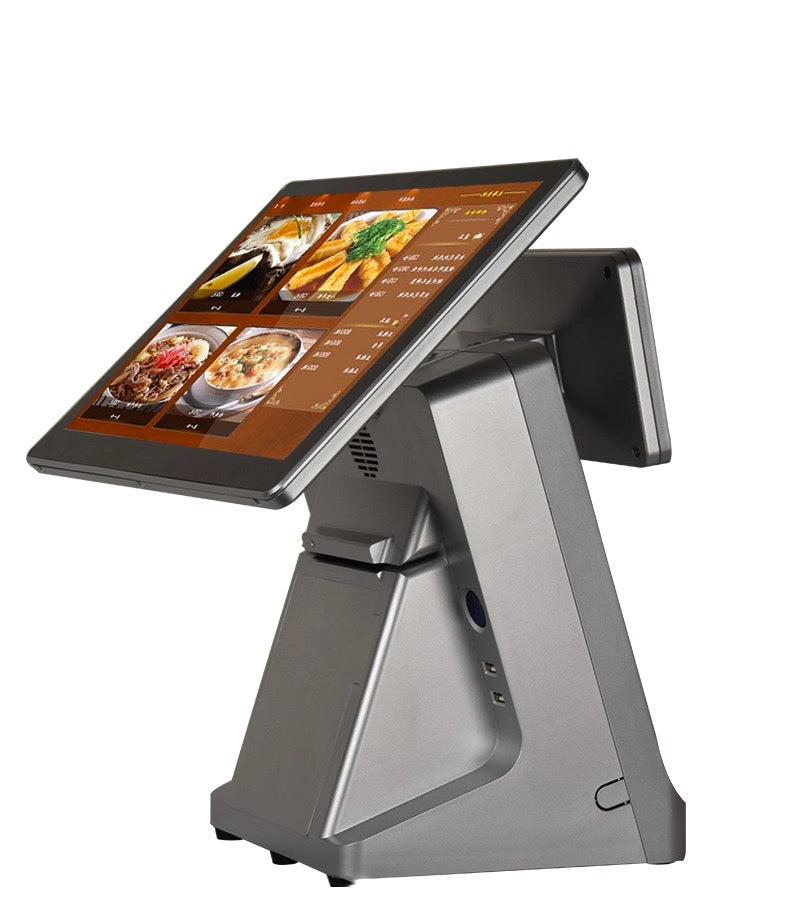

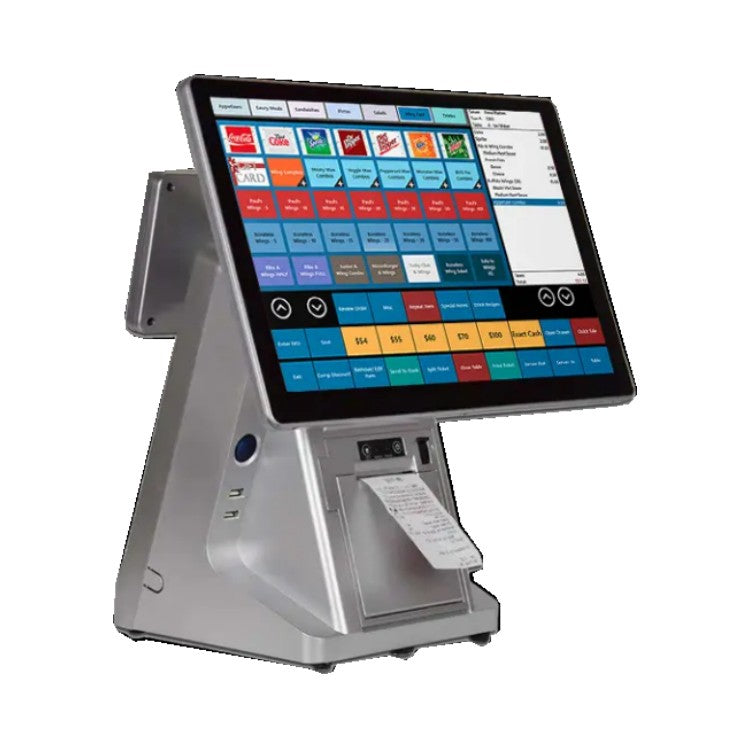

NB-POS620P Touch Screen POS Cash Register with Printer
NETBYE POS system features a 15.6-inch LED capacitive touchscreen and supports multiple interfaces, including six USB ports, a VGA port, a LAN port, and an RS232 port. It utilizes an industrial-grade motherboard (upgradeable) and is powered by an Intel Celeron J1800 dual-core processor. The system offers flexible memory (up to 8GB) and storage (up to 256GB SSD) upgrade options and is suitable for retail and commercial use. Optional peripherals include thermal printers, barcode scanners, and cash drawers.
| Specification | Details |
|---|---|
| General Information | |
| Model | NB-POS620P |
| Name | 15.6-inch All in One Touch Screen POS Terminal |
| Housing | Plastic with metal combined |
| Color | Whole pearl white machine body or pearl white match gray machine body |
| Display | |
| Main Screen | 15.6-inch touch screen monitor |
| Resolution | 1366 × 768 |
| Brightness | 250 cd/m² |
| View Angle | Horizon: 160°; Vertical: 150° |
| Touch Screen | Multi-point projected G+G capacitive touch |

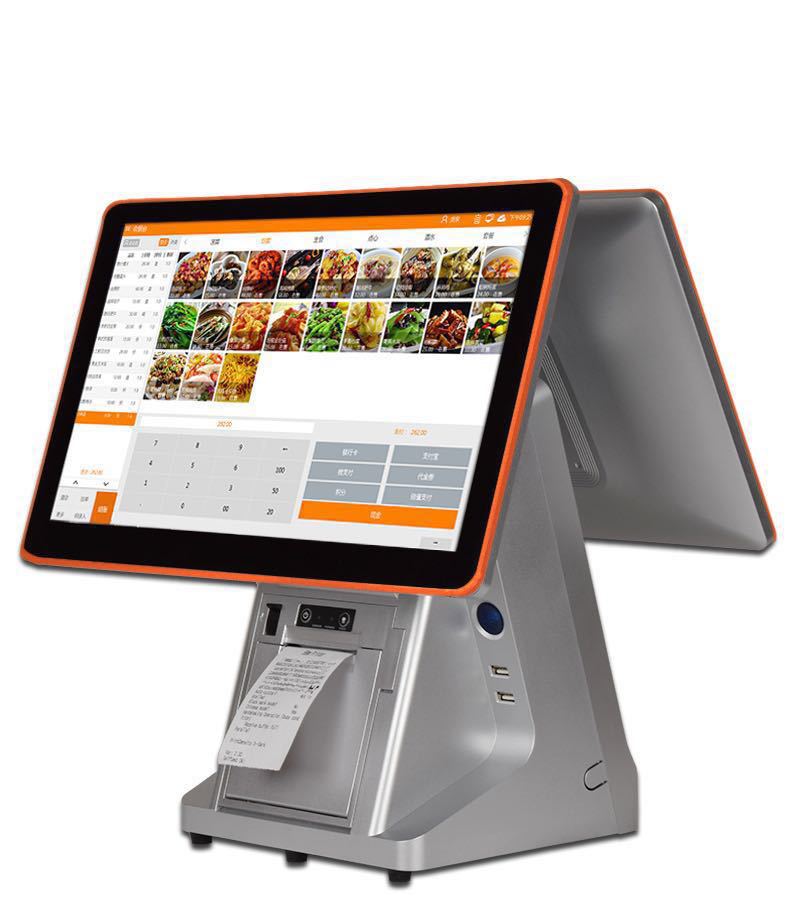

| Sub-display | 15.6-inch display and 13.3-inch display W/ or W/o touch function, resolution 1366×768 for option |

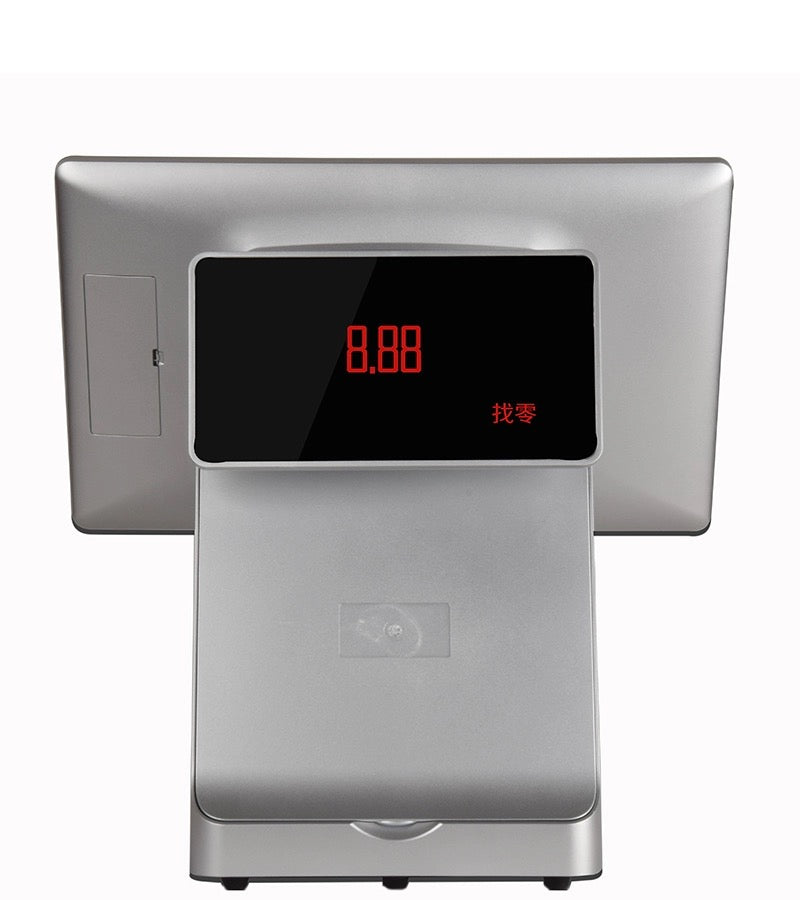

| Customer Display | 2×20 VFD mounted to back cover for option |
| Performance - Windows Version | |
| Motherboard | Intel Celeron J4125, 2.0GHz or Intel Core I3 / I5 4th CPU for option |
| System Memory | 1×SO-DIMM DDR4 slot, support 2400MHz, 4GB (default), 8GB for option |
| Storage Device | Msata SSD 64GB or higher, up to 256GB |
| Audio | On board Real Tek ALC662 audio chip |
| LAN | 10/100Mbs, Realtek RTL8111F Lan chip |
| Wireless | Built in Mini PCI-E slot, support embedded WIFI module |
| Operating System | Windows 10/11 |
| Performance - Android Version | |
| Motherboard | Rockchip series quad core RK3568 default, RK3288, RK3399 for option |
| System Memory | On board DDRIV 2GB, 4GB for option |
| Storage Device | On board 16GB EMMC, 32GB for option |
| LAN | RJ45 port support 10/100Mbs internet |
| WIFI & BT Module | Support Wi-Fi 802.11b/g/n, BT3.0/BT4.0 support |
| Operating System | Android 7.1, up to Android 8.1 Android 11 |

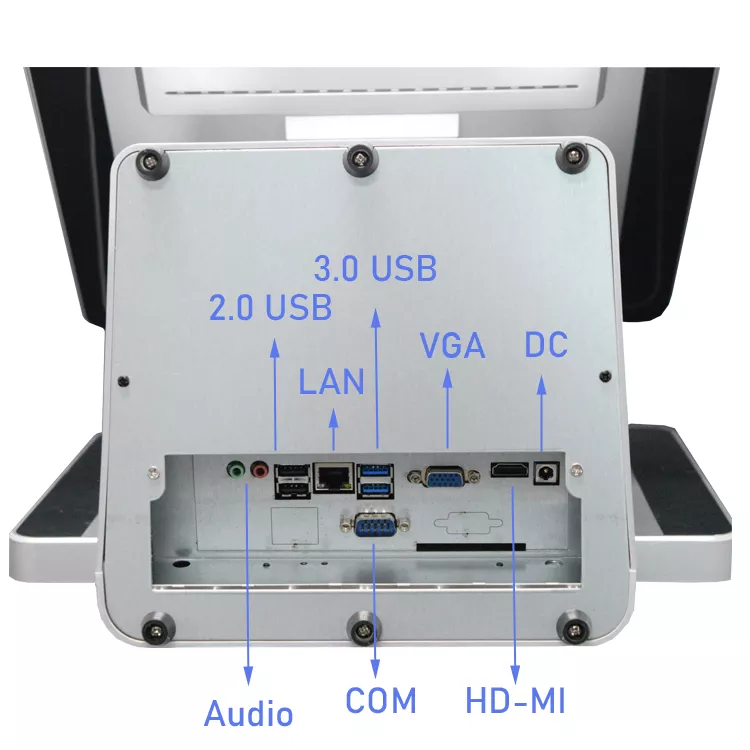

| Connectivity | |
| Windows and Android (J4125 & RK3568) |
|
| Windows (J4125) |
|
| Android (RK3568) |
|
| Options | |

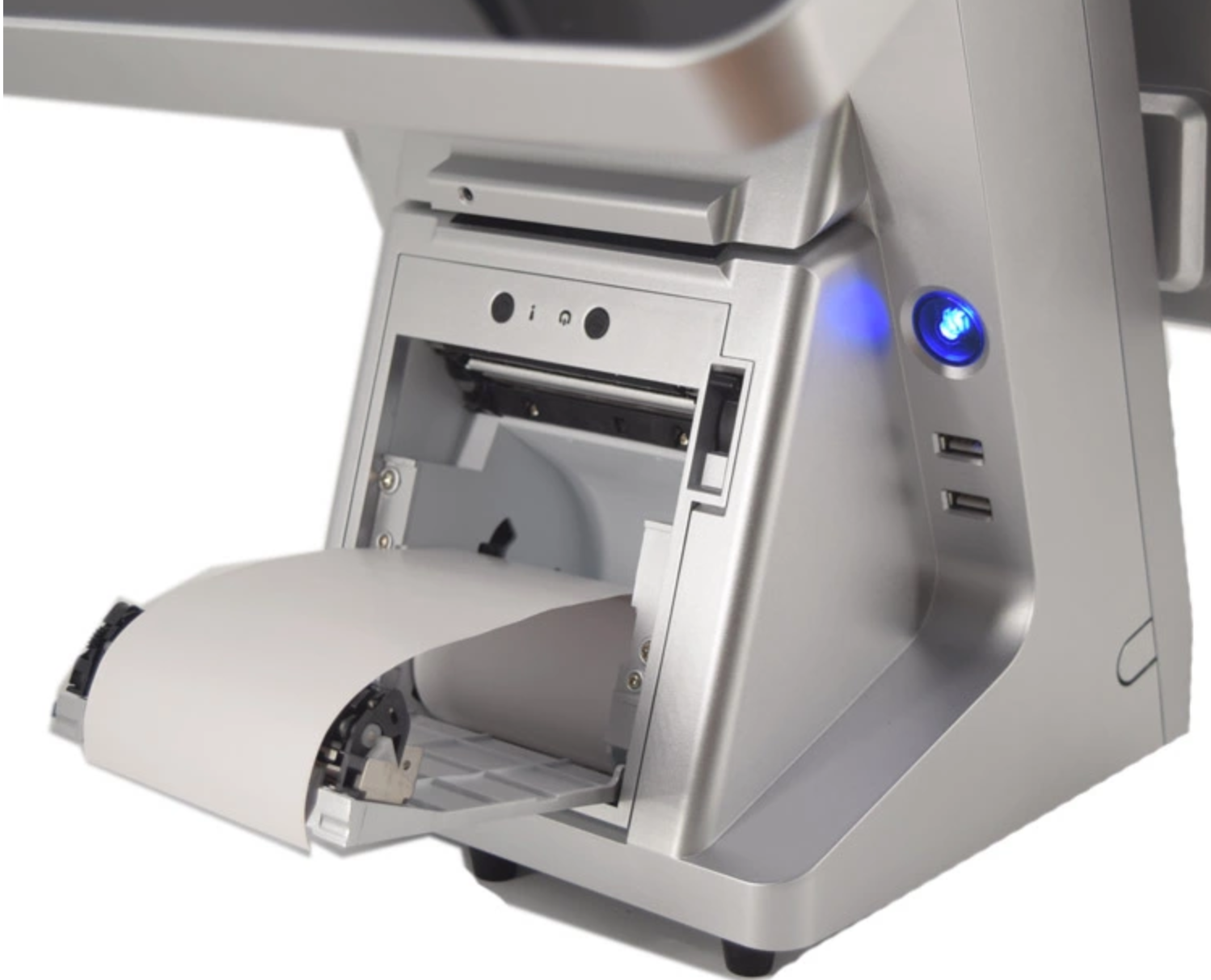

| 80mm Thermal Printer |
|
| 58mm Thermal Printer |
|
| MSR | Optional side MSR just for 15.6-inch |
| Web Camera | Web camera mounted on top of the display for option |
| Speaker | 8Ohm/5W speaker inside for option |
| Package | |
| Weight | Net: 6.5Kg, Gross: 8.5Kg for 15.6 dual screen |
| Package Dimensions | 300 × 465 × 500mm |
| Environment | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Working Humidity | 10% to 80% RH |
| Storage Humidity | 10% to 90% RH |
| Accessories | |
| Power Adapter | 110-240V/50-60Hz AC power input, DC12V/5A output adaptor for W/o printer and W/ 58mm printer machine. DC12V/7A output adaptor only for W/80mm printer machine |
| Power Cable | Power cable plug compatible with USA / EU / UK etc and customized available |
| CD Driver | Motherboard driver and touch driver inside for option |
| Compliance | |
| Certifications | FCC Class A / CE Mark / LVD / CCC |
