- Sku: NB-POS750D-I5-16G-512G

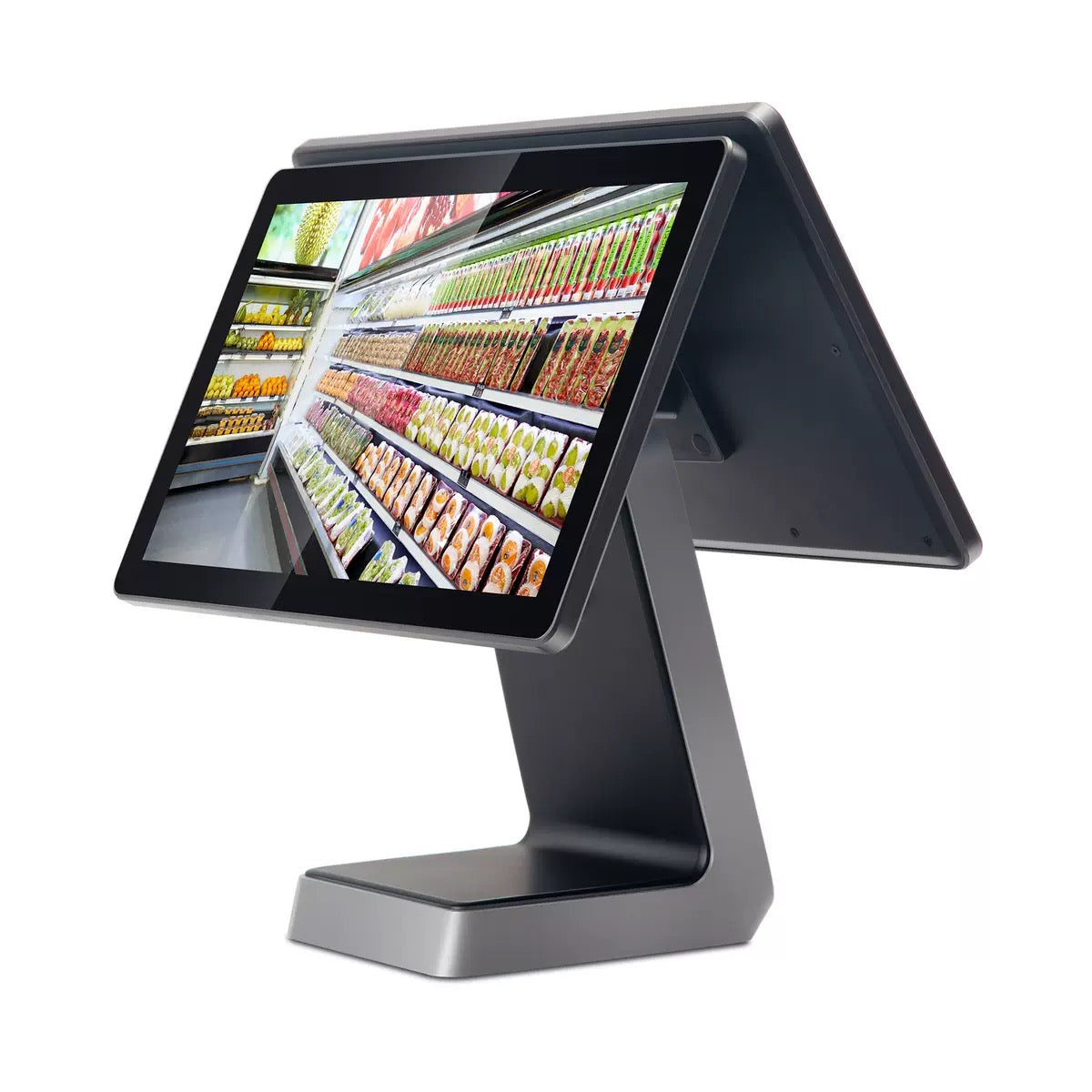

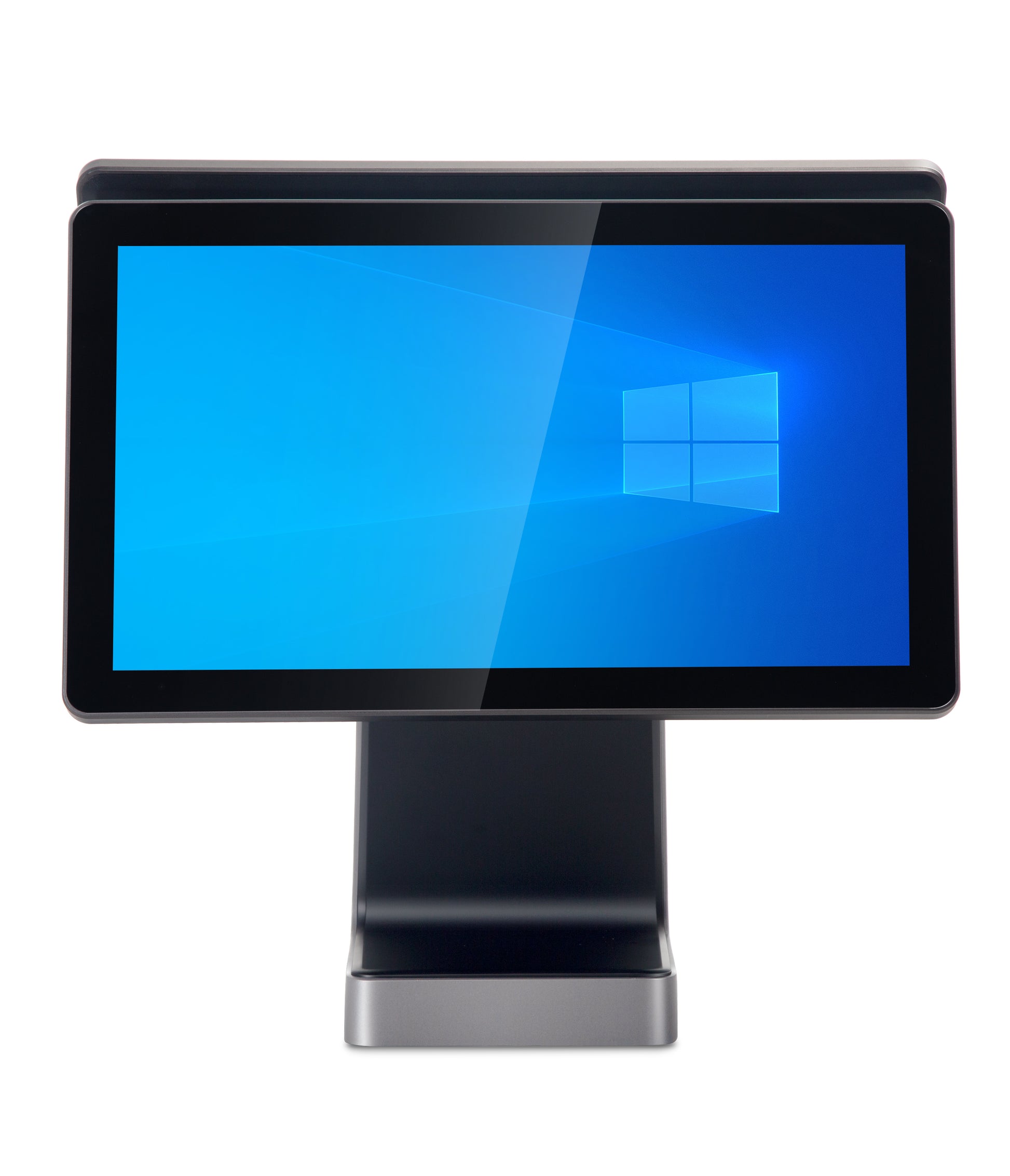

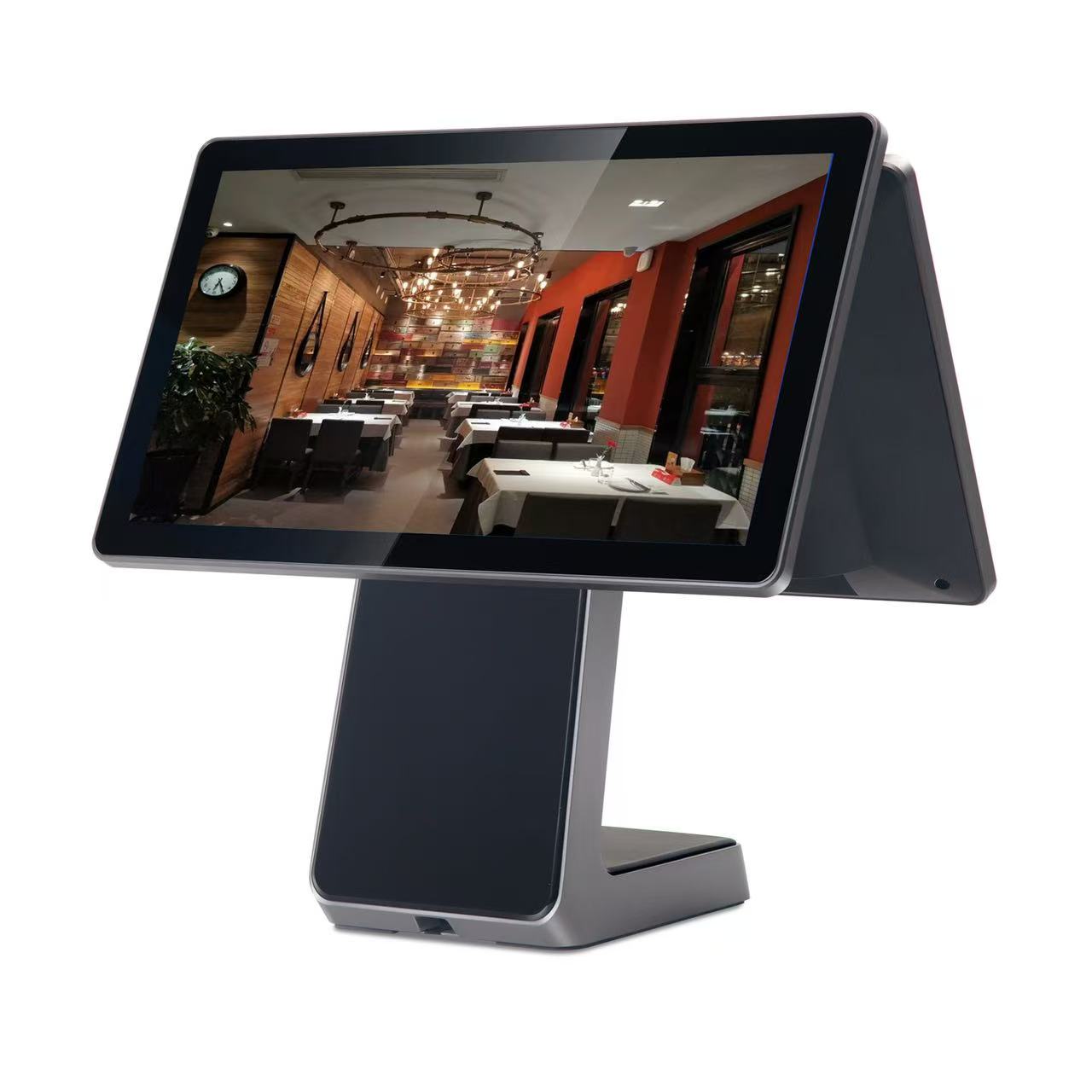

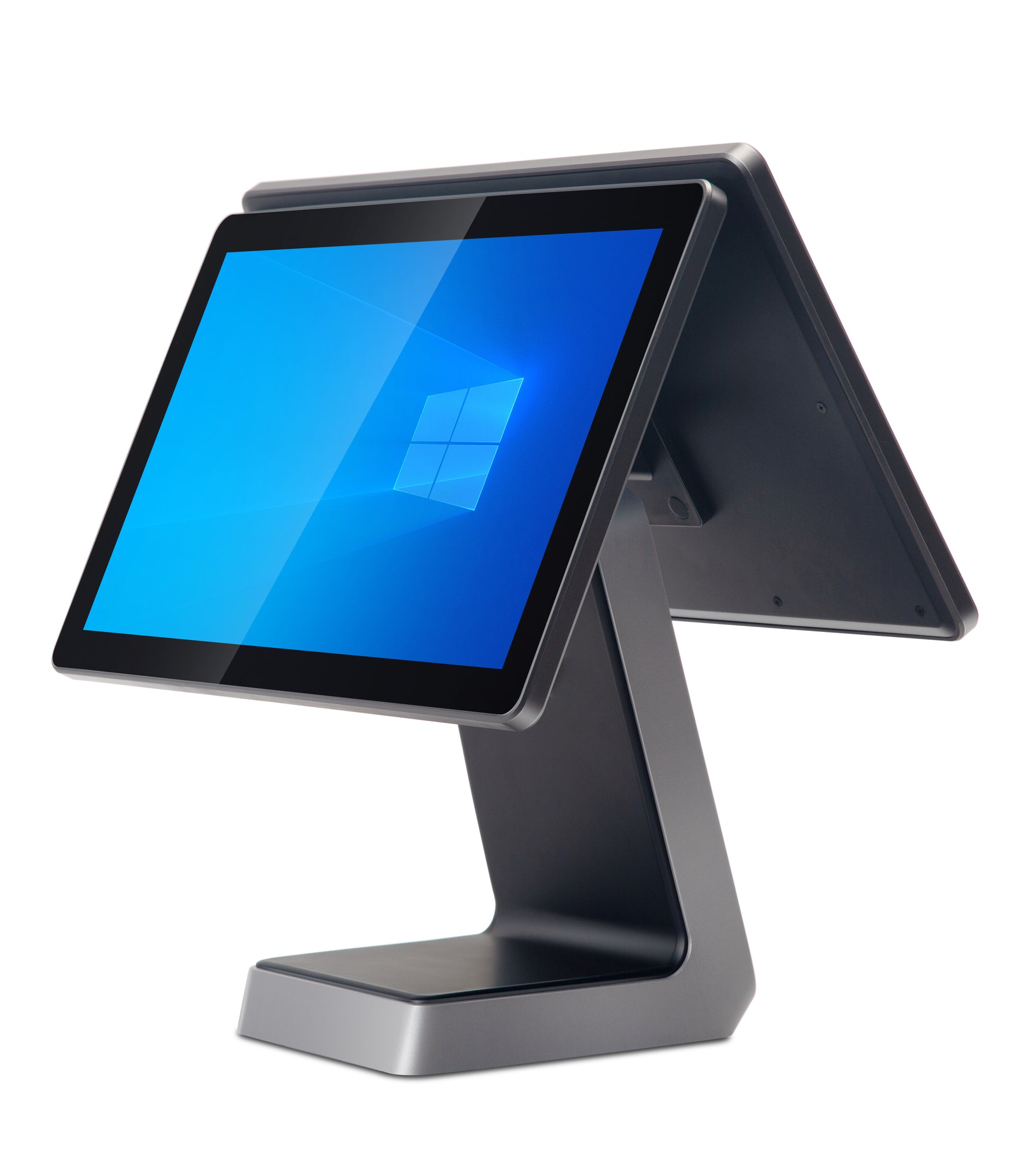

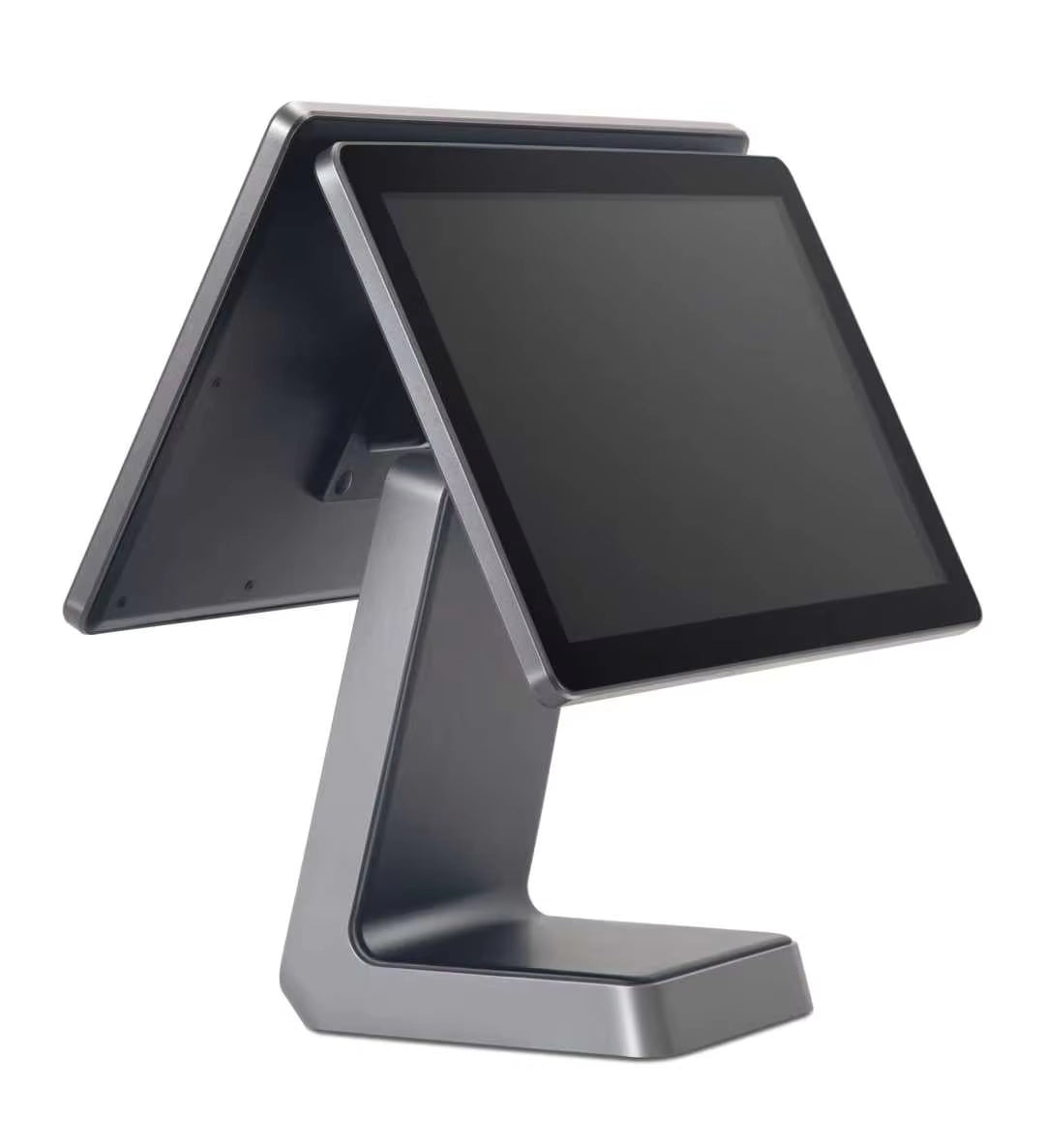

NB-POS750D 15.6-inch Windows Touch POS Terminal
Samples available before volume orders · OEM/ODM welcome · CE / FCC / RoHS documentation on request
Will this work with your POS software?
Setup guides covering how to connect, the settings that catch people out, and which models suit each system.
Using different software? Ask us and we will confirm compatibility before you order.
| Specification | Details |
|---|---|
| General Information | |
| Model | NB-POS750D |
| Name | 15.6 inch Touch POS Terminal |
| Housing Material | Aluminium alloy Plus ABS |
| Display | |
| Main Screen | 15.6 inch touch screen monitor |
| Resolution | 1920 × 1080 |
| Brightness | 250 cd/m² |
| View Angle | Horizon: 170°; Vertical: 170° |
| Touch Screen | Multi-point projected G+G capacitive touch |
| Sub-display | 15.6 inch display W/ or W/o touch function for option, default 1366×768, 1920×1080 for option |
| MSR | 3-track card reader for option |
| Speaker | Built-in 4ohm/3W speaker × 1 |
| Performance | |
| Motherboard | Intel Core CPU I3 / I5 / I7 for option |
| System Memory | 4GB / 8GB for option |
| Storage Device | Msata SSD 64GB / 128GB / 256GB / 512GB |
| LAN/WLAN | 10/100/1000Mbs, Realtek RTL8111F Lan chip built in Mini PCI-E slot, support embedded WIFI module |
| Operating System | Support Windows 10/11 |
| Optional | WIFI / Card reader / Small horn / Receipt printer / Scanner Gun |
| Connectivity | |
| External I/O Port (J6412) |
|
| External I/O Port (RK3568) |
|
| Environment | |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Working Humidity | 10% to 90% RH (Non-condensing) |
| Storage Humidity | 10% to 90% RH (Non-condensing) |
| Package | |
| Weight | 5.9 Kg |
| Package Dimensions | 410 × 410 × 150 mm |
| Accessories | |
| Power Adapter | 110-240V/50-60Hz AC power input, DC12V/6A output adaptor |
| Power Cable | Power cable plug compatible with USA / EU / UK etc and customized available |
| Compliance | |
| Certifications | FCC / CE / ROHS |
Have a question?
FAQ
We are based in Gguangdong, China, start from 2020,sell to Western Europe(30.00%),Eastern Europe(20.00%),North America(10.00%),South America(10.00%).
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Of course, we hope you can order a sample to test the quality before ordering in bulk, which is safer for both of us, because you can try the product yourself and see if it meets your requirements.
We will try our best to offer 24/7 after sales service about our products.
Yes, we have a one-year warranty. If the whole product is defective and can't be used, we will send relevant accessories to you in your next order.
