- Sku: NBBS-S30

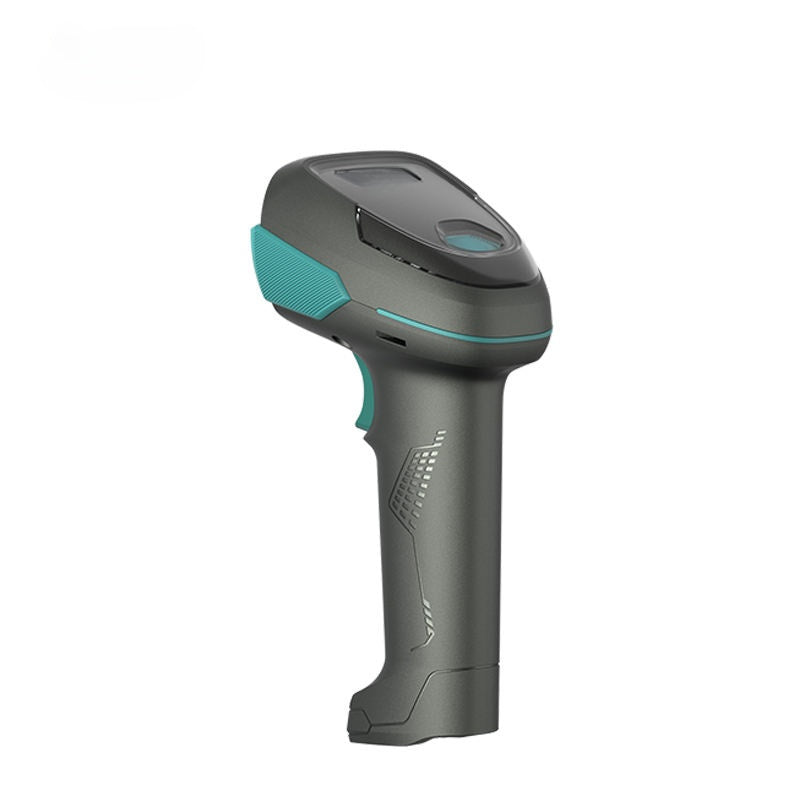

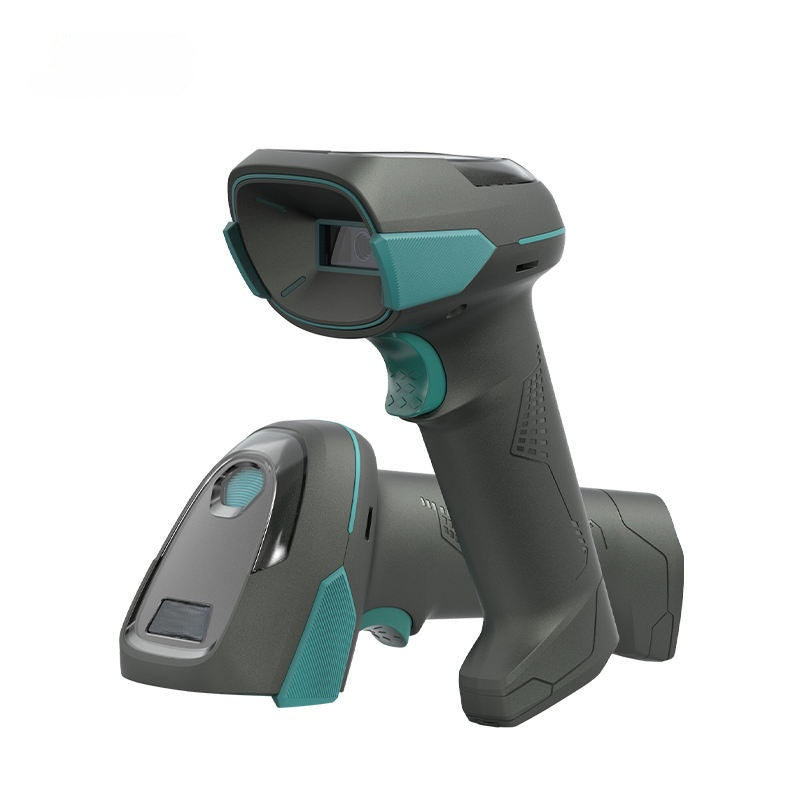

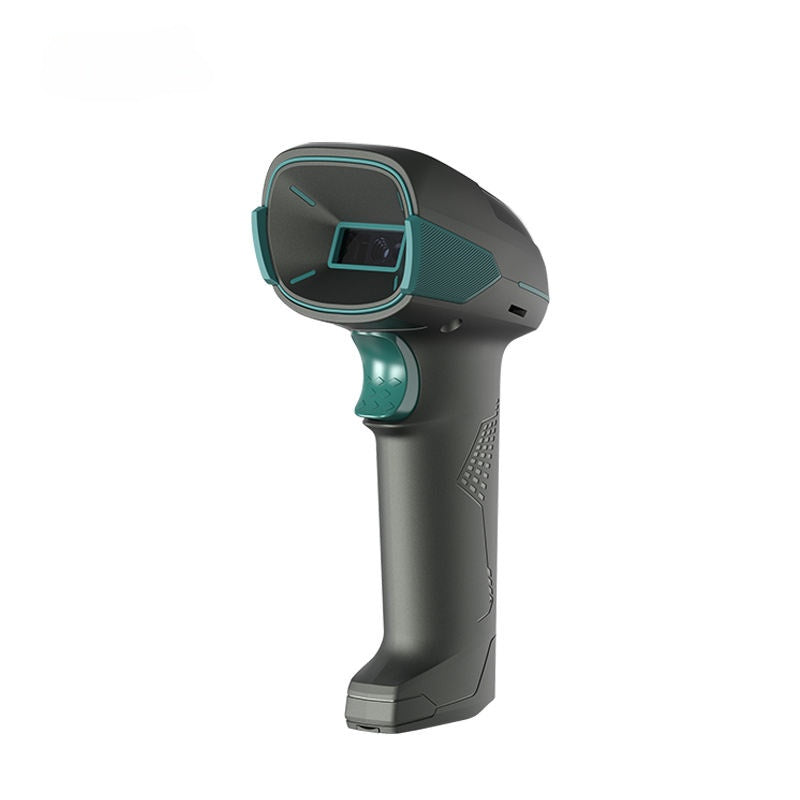

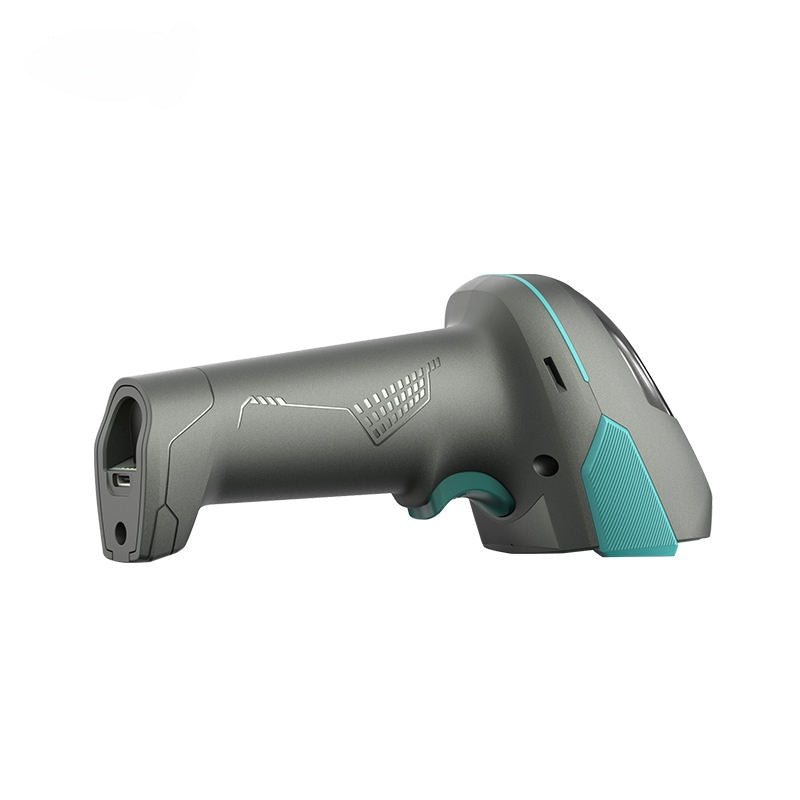

NBBS-S30 High Resolution 1D/2D Wired Barcode Scanner
Samples available before volume orders · OEM/ODM welcome · CE / FCC / RoHS documentation on request
Will this work with your POS software?
Setup guides covering how to connect, the settings that catch people out, and which models suit each system.
- Odoo POS
- uniCenta oPOS
- SambaPOS
- KORONA POS
- eHopper POS
- Erply POS
- Hike POS
- StoreHub POS
- Moka POS
- Nextar POS
- Qashier POS
Using different software? Ask us and we will confirm compatibility before you order.
| Specification | Details |
|---|---|
| General Information | |
| Model | NBBS-S30 |
| Color | Black + Blue |
| Material | ABS + PC |
| Current | Working current (Standard): < 280mA Standby current (Standard): < 130mA |
| Input Voltage | 5 VDC (±10%) / 500mA |
| CPU | 1.2G Dual core |
| Interface | USB-HID / USB-COM |
| Reading Indicators | LED light & Buzzer |
| Performance | |
| CMOS Sensor |
1280×800 pixels, 1MP rolling exposure
640×480 pixels, 0.3MP global exposure
1280×800 pixels, 1MP global exposure
|
| Light Source | LED White light |
| Aiming Light | Green dot |
| Resolution | 4mil |
| Trigger Mode | Manual, Continuous scanning, Auto-sensing |
| ESD Protection | 15KV air discharge |
| Shock Resistance | 1.5m free fall on concrete surface |
| Printing Contrast | ≥15% |
| Barcode Support | |
| 1D Barcodes | All standard 1D codes including GS1 DataBar m linear code can be automatically distinguished and decoded |
| 2D Barcodes | Aztec Code, Data Matrix, MaxiCode, QRCode, HANXIN, MicroQR Code |
| Stack Codes | GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Composite, MicroPDF417, PDF417 |
| Typical Depth of Field | |
| Precision Barcode Depth |
The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.
|
| Reading Angle | |
| Angles | Pitch: 0-360° Roll (Tilt): ±60° Skew (Yaw): ±60° |
| Physical Characteristics | |
| Weight | Net: 180g |
| Dimensions (W × H × D) | 173 × 67 × 79 mm |
| Package Box | 195 × 118 × 82 mm / 0.42 kg |
| 20 in 1 Carton | 435 × 235 × 410 mm |
| Environmental Conditions | |
| Operating Temperature & Humidity | 0°C to 45°C, 10% to 80% RH (Non-condensing) |
| Storage Temperature & Humidity | -20°C to 60°C, 10% to 90% RH (Non-condensing) |
