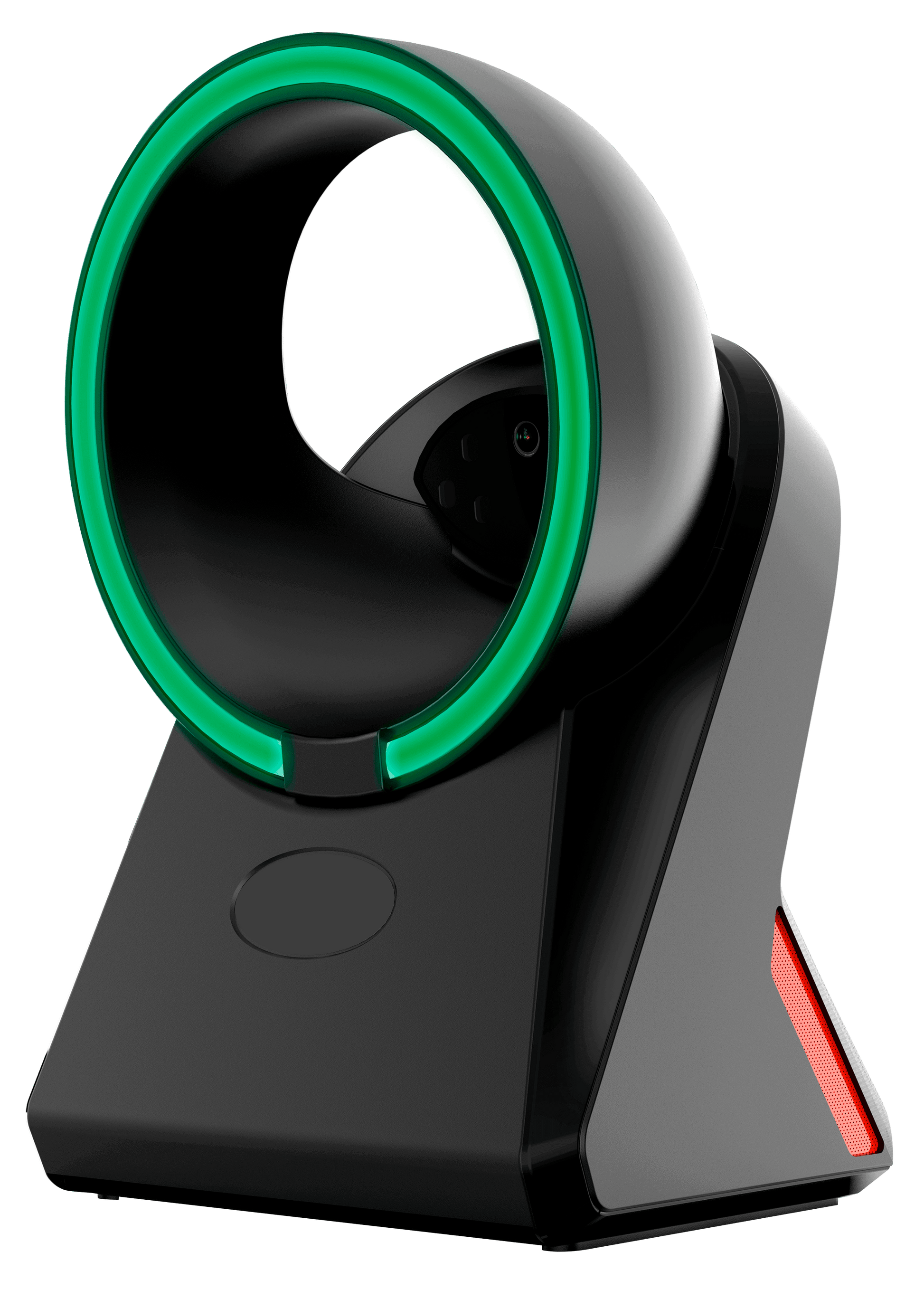

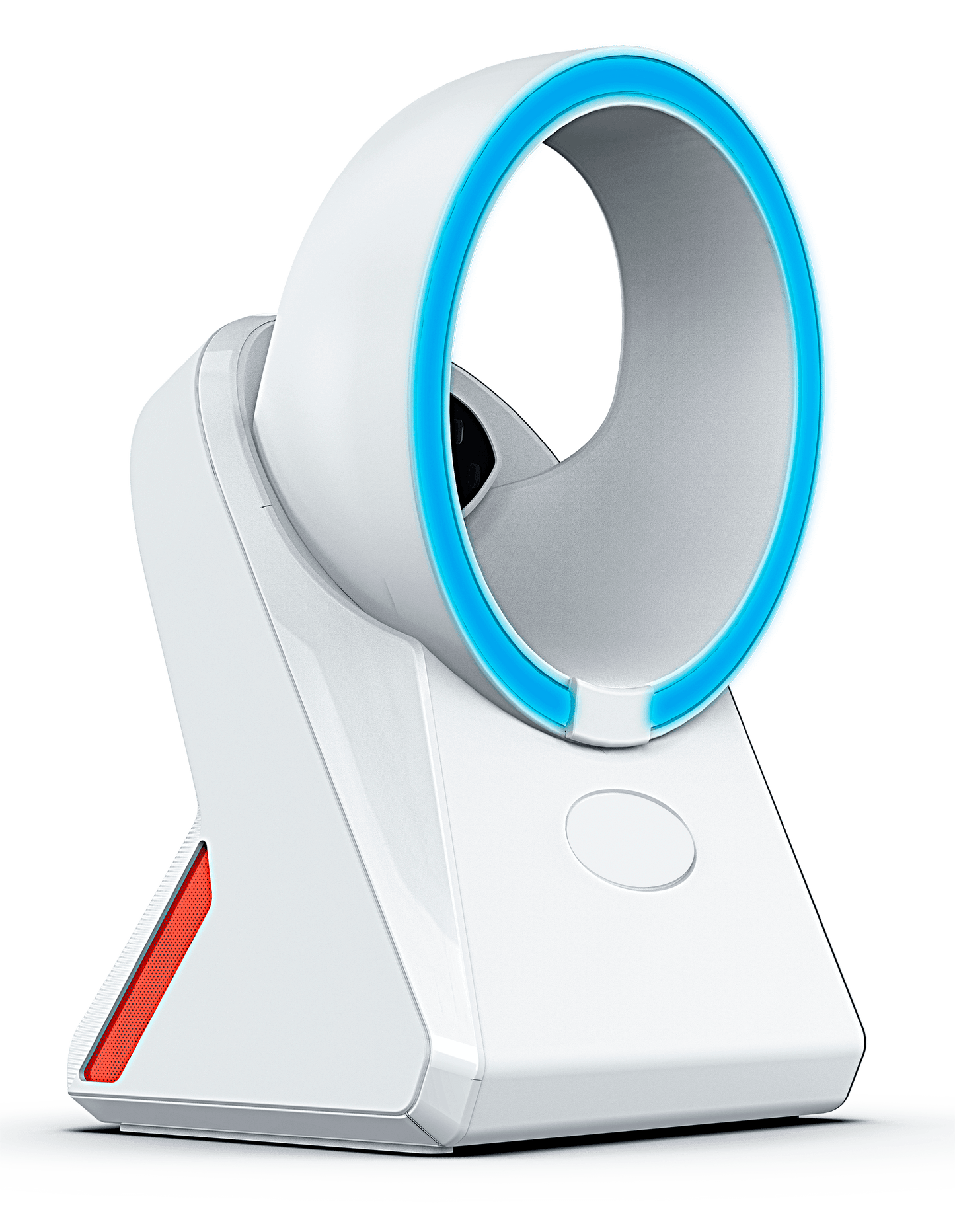

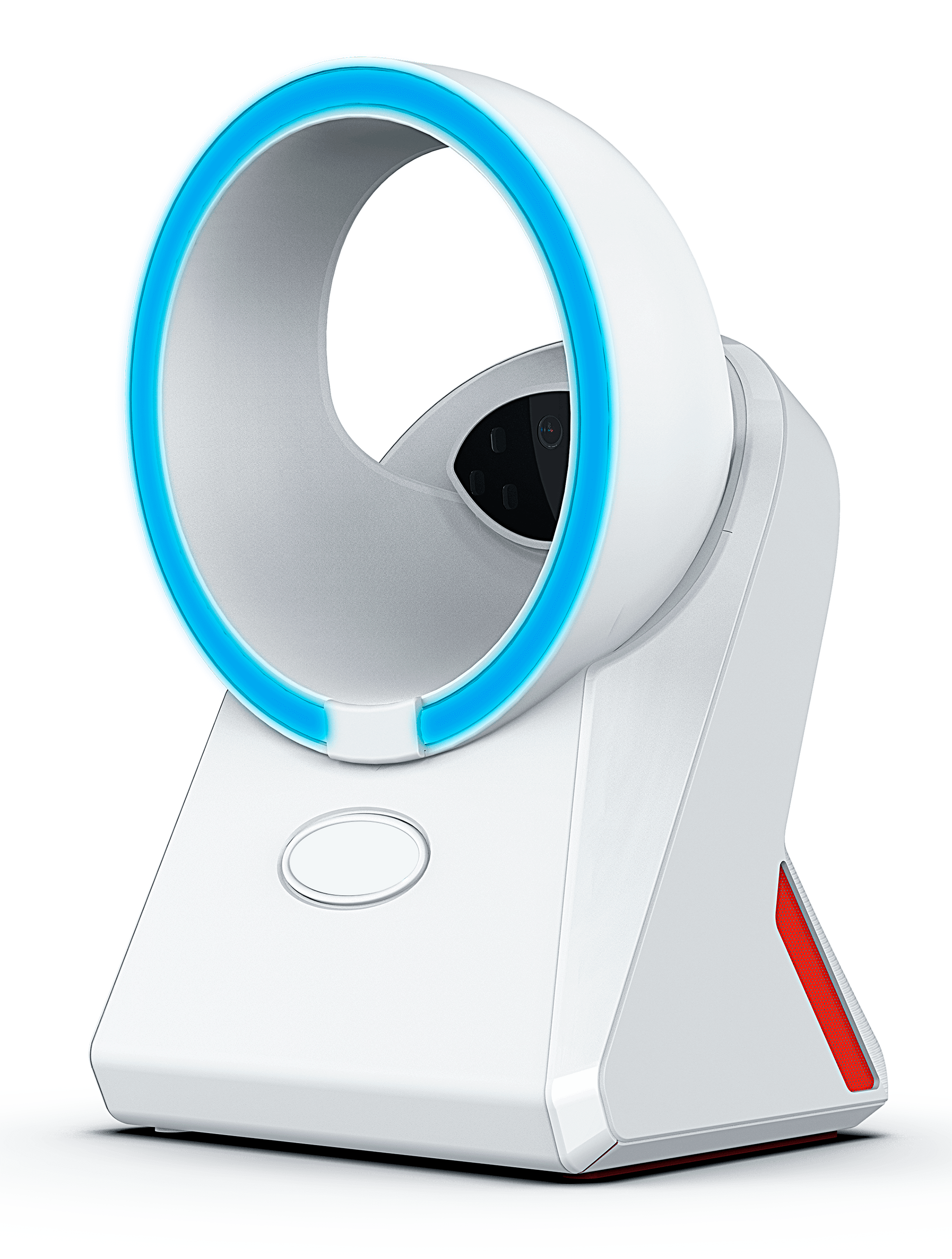

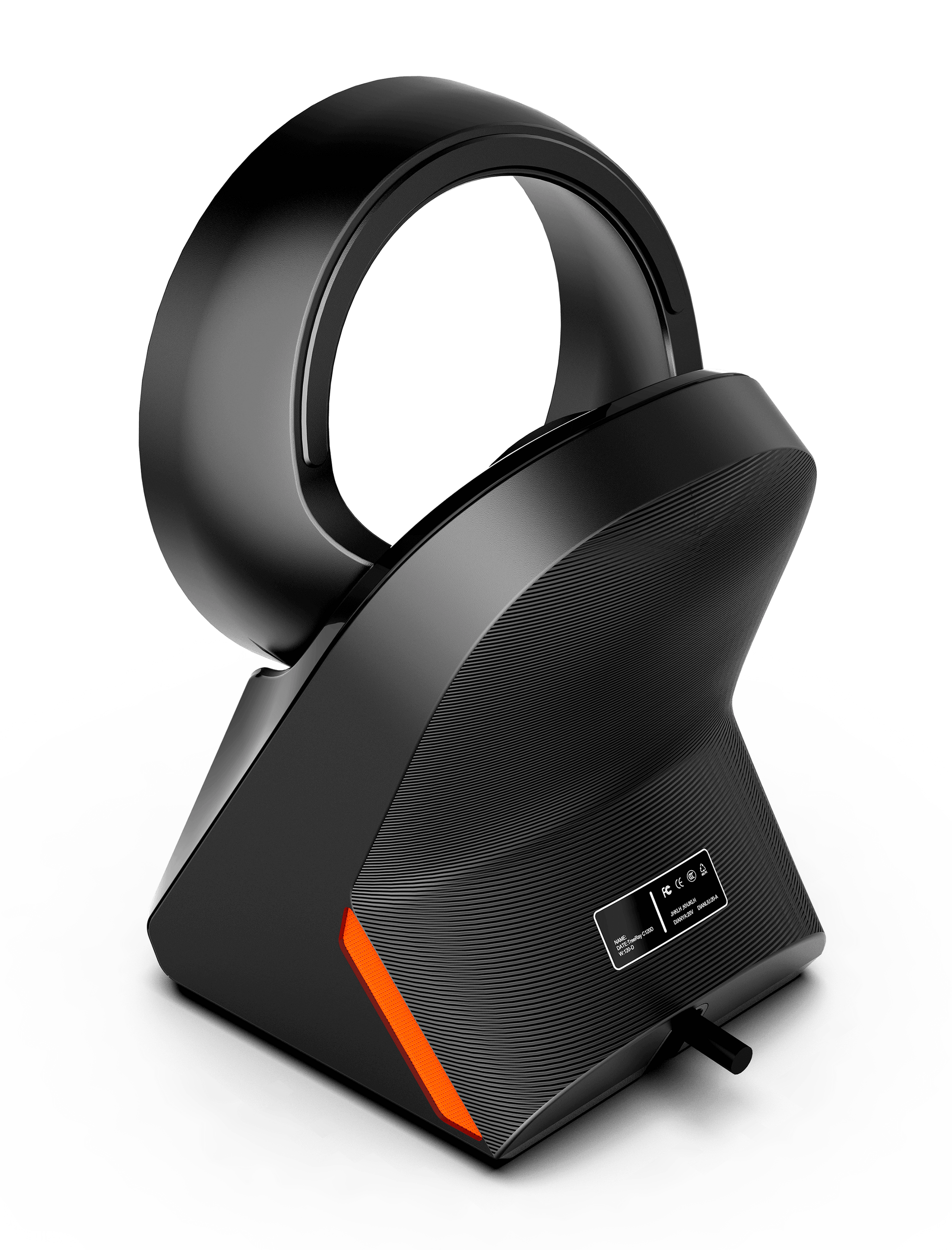

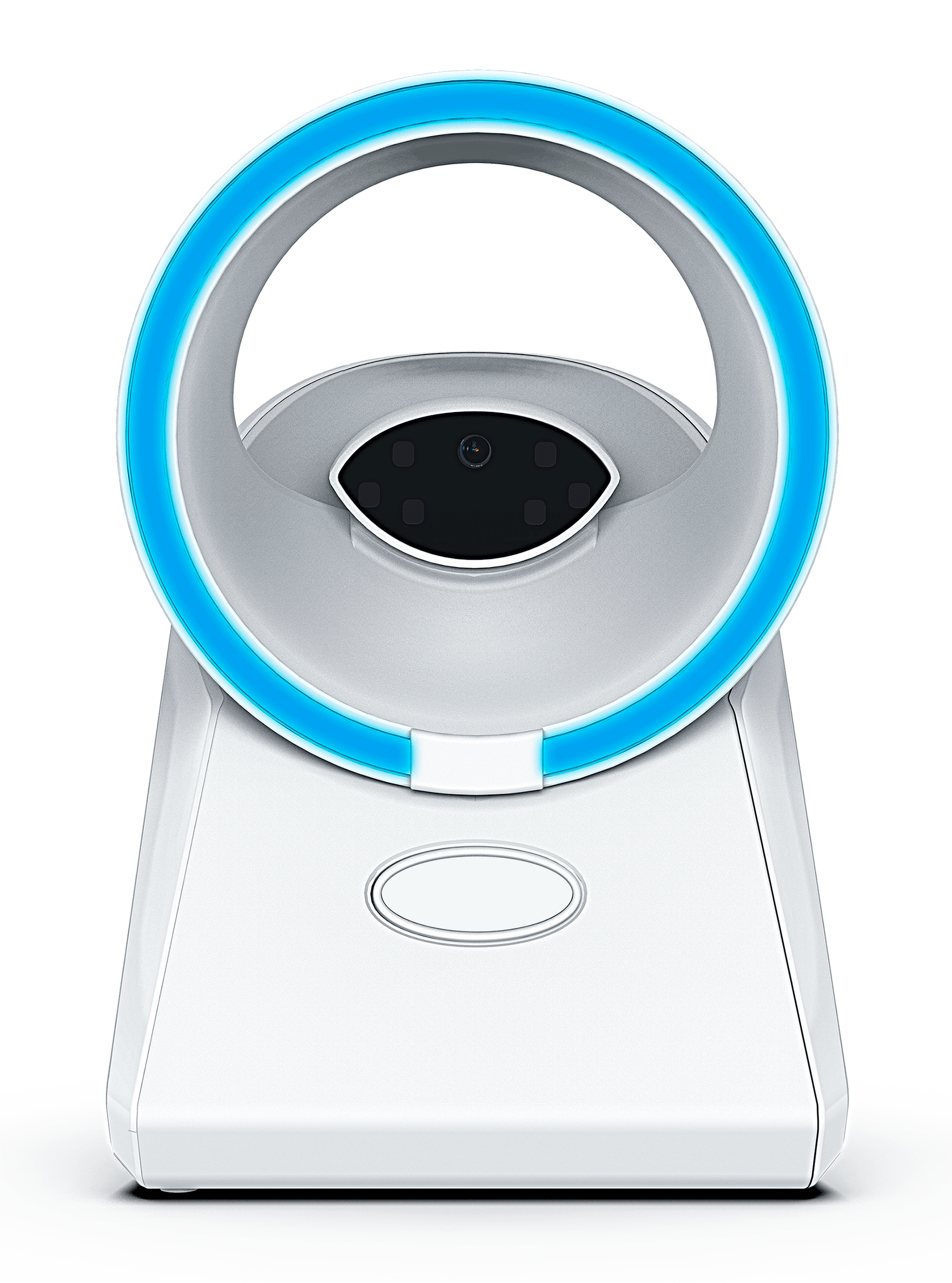

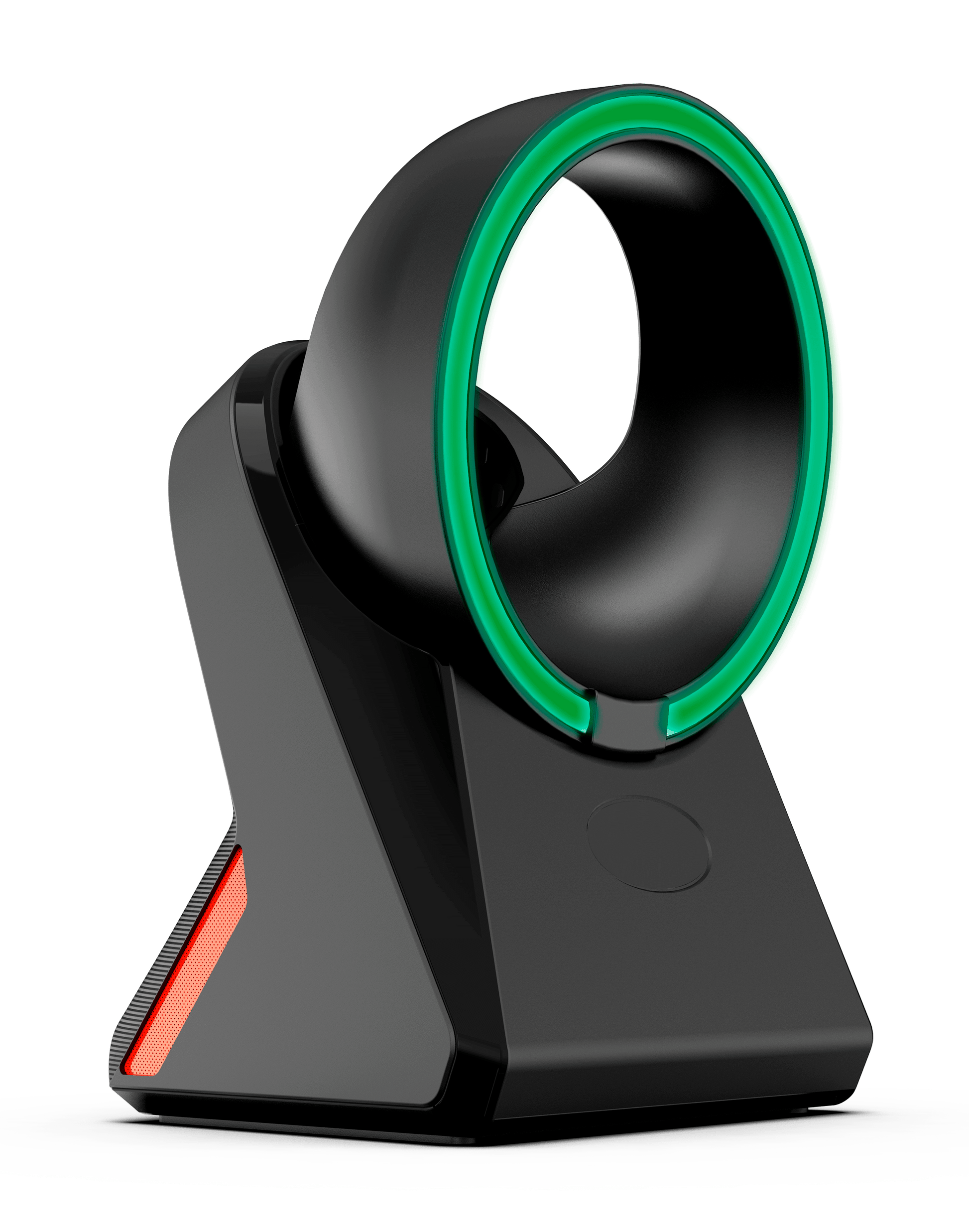

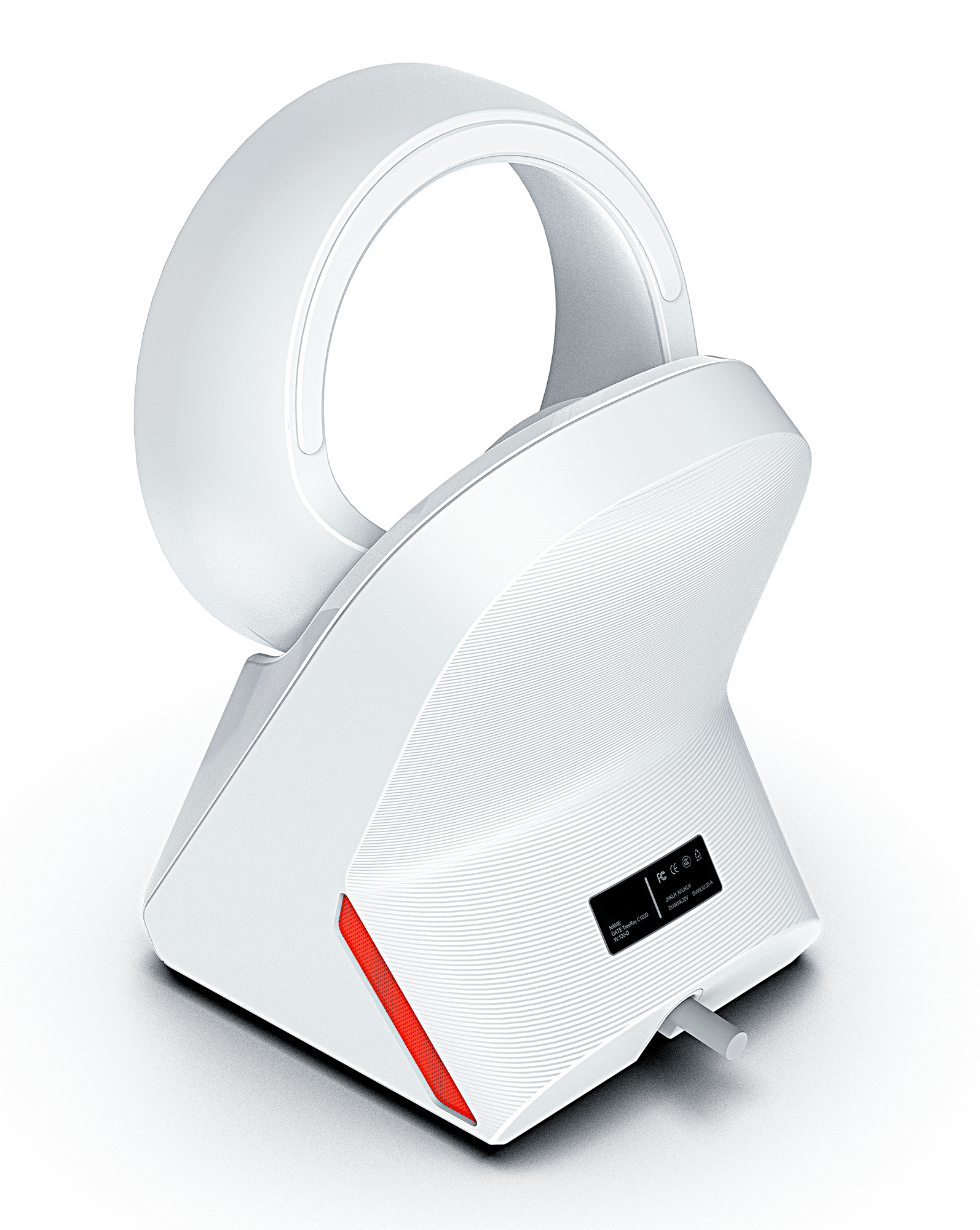

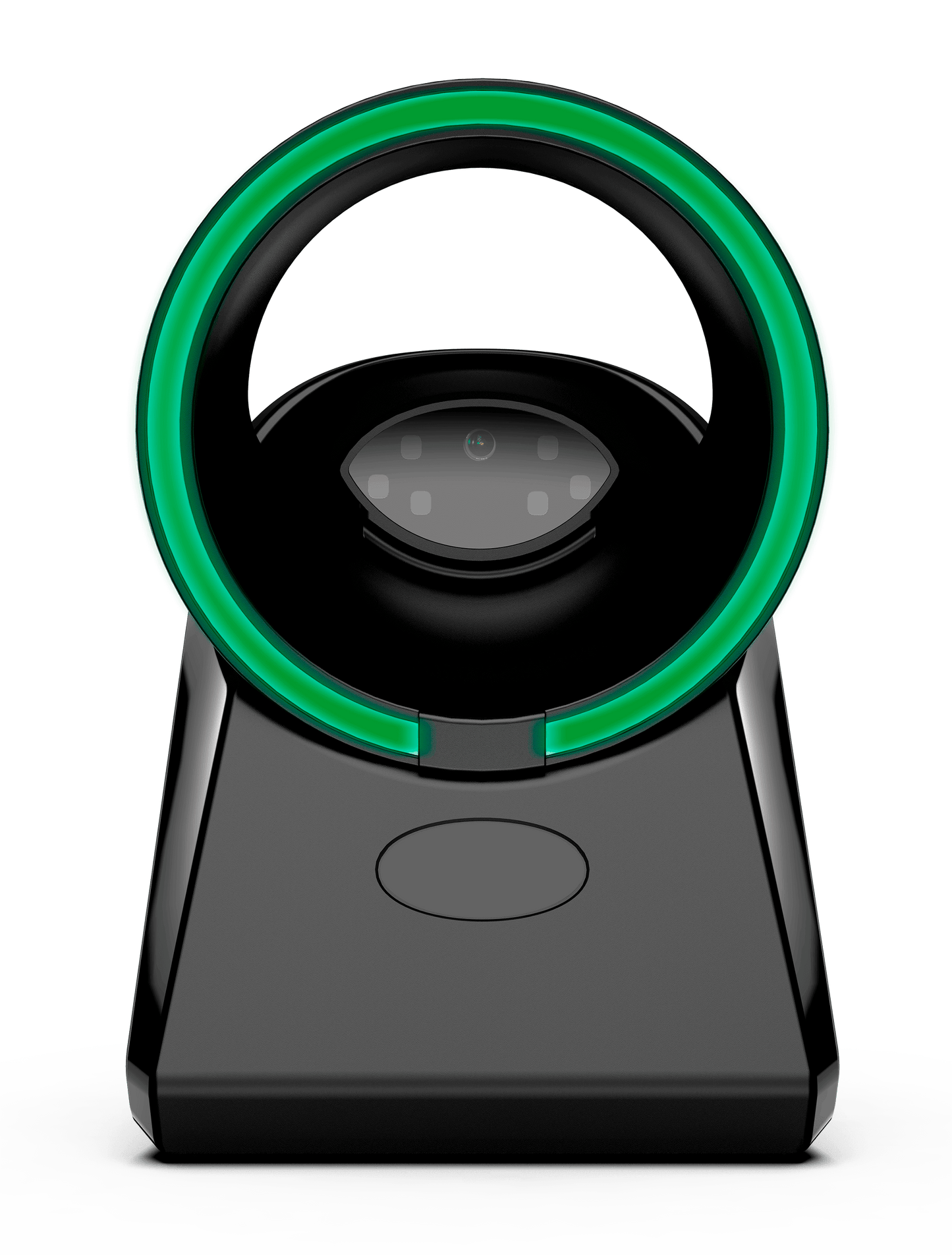

NBBS-S86 2D Omni-Directional Barcode Scanner
| Specification | Details | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Performance Parameters | |||||||||||||||||||||||||
| Light Source | LED White LED | ||||||||||||||||||||||||
| Image Sensor | 640 × 480 pixels | ||||||||||||||||||||||||
| Resolution (Maximum) | 0.102mm / 4mils | ||||||||||||||||||||||||
| Print Contrast Ratio (Minimum) | ≥15% | ||||||||||||||||||||||||
| Motion Tolerance | 2 m/sec | ||||||||||||||||||||||||
| Reading Angle | Pitch: 0-360° Roll (Tilt): ±60° Skew (Yaw): ±60° |
||||||||||||||||||||||||
| Reading Indicators | LED / Buzzer (adjustable tone) | ||||||||||||||||||||||||
| Decoding Capability | |||||||||||||||||||||||||
| 1D Barcodes | All standard 1D codes, including GS1 DataBar m linear code can be automatically distinguished and decoded | ||||||||||||||||||||||||
| 2D Barcodes | Aztec Code, Data Matrix, MaxiCode, QRCode, HANXIN, MicroQR Code | ||||||||||||||||||||||||
| Stack Codes | GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Composite, MicroPDF417, PDF417 |
||||||||||||||||||||||||
| Typical Depth of Field | |||||||||||||||||||||||||
| Precision Reading Ranges |
Precision Barcode Reading Performance
The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.
|
||||||||||||||||||||||||
| Physical Characteristics | |||||||||||||||||||||||||
| Color Available | |||||||||||||||||||||||||
| Dimensions (D × W × H) | 96 × 79 × 151 mm | ||||||||||||||||||||||||
| Weight | 260g | ||||||||||||||||||||||||
| Cable | 1.8M - 3M | ||||||||||||||||||||||||
| Electrical Parameters | |||||||||||||||||||||||||
| Current |
Working current (Standard): < 300 mA
Standby current (Standard): < 210 mA
|
||||||||||||||||||||||||
| Input Voltage | 5 VDC (±10%) / 500mA | ||||||||||||||||||||||||
| Environmental Parameters | |||||||||||||||||||||||||
| ESD Protection (Air discharge) | 8 kV | ||||||||||||||||||||||||
| Drop Resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface | ||||||||||||||||||||||||
| Environmental Conditions |
0 to 40 °C
Operation Temperature
-40 to 70 °C
Storage/Transport
5 - 95%
Humidity (non-condensing)
0 - 100,000 lux
Ambient Light
|
||||||||||||||||||||||||
| Interfaces | |||||||||||||||||||||||||
| Supported Interfaces |
RS-232 USB HID USB COM HID POS
HID POS available as per customer's needs
|
||||||||||||||||||||||||
