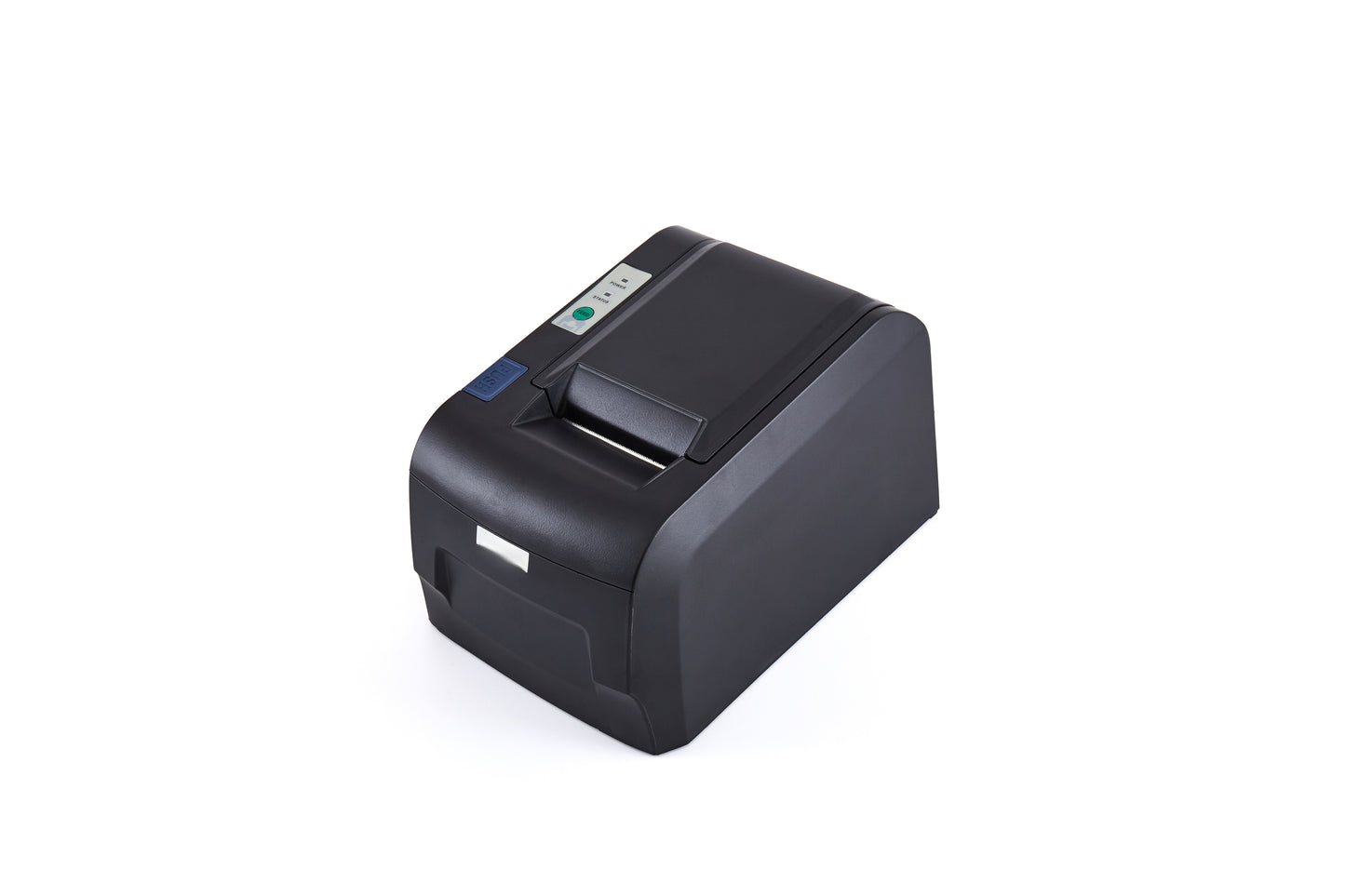

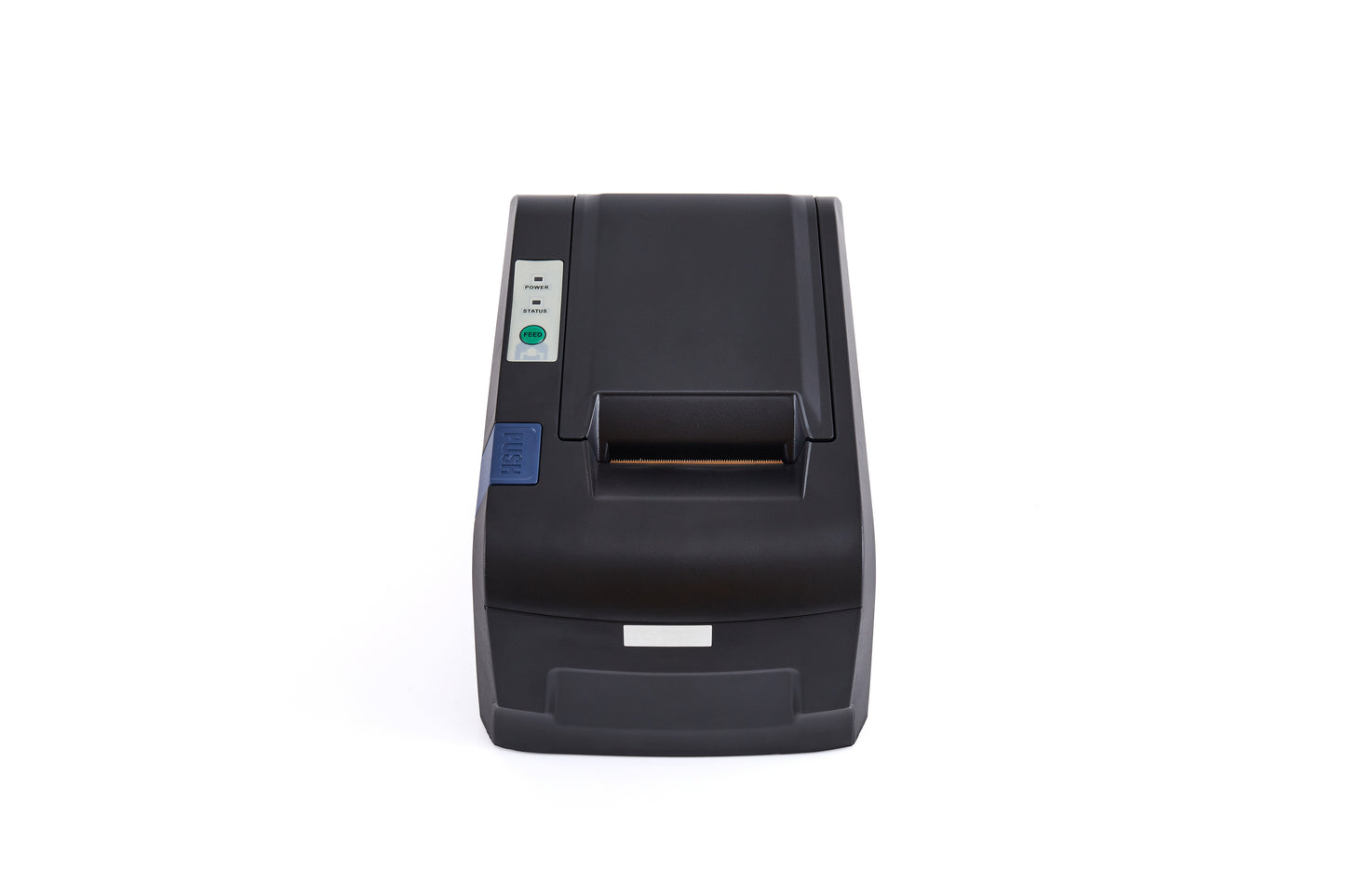

NBTP-5820 58mm Desktop Thermal Receipt Printer USB Printer For Bill ticket
| Specification | Details |
|---|---|
| General Information | |
| Model | NBTP-5820 |
| Name | 58mm Desktop Thermal Printer |
| Color | Black |
| Interface & Power | |
| Optional Interface | USB (USB+BT optional) |
| Power Supply | Input: AC 100V-240V, 50-60Hz, Output: DC 12V/3A |
| Cash Drawer Drive | DC 12V / 1A |
| Core Components | |
| Print Head Lifespan | 60 km |
| Cutter | Manual Cutting |
| Sensors | Paper End, Cover Open |
| Accessories | |
| Included Accessories | Data Cable, Power Adaptor, Power Cord, Paper Roller, CD, Manual |
| OS Support | |
| Supported Operating Systems | Compatible with Windows, Linux, Android, iOS |
| Printing Capability | |
| Printing Method | Direct Thermal Line |
| Resolution | 8 dots/mm (203 dpi), 384 dots/line |
| Printing Speed | 70 mm/s |
| Print Width | 48 mm |
| Printing Command | Compatible with ESC/POS |
| Barcode & Character | |
| Media Specifications | |
| Paper Type | Thermal Roll Paper |
| Paper Width | 57.5 ± 0.5 mm |
| Paper Roll Diameter | Max. 50 mm |
| Paper Thickness | 0.06 - 0.08 mm |
| Physical Characteristics | |
| Dimensions (W x D x H) | 210 × 145 × 125 mm |
| Weight | 1.5 kg (without paper roll) |
| Package Box Dimensions | 220 × 200 × 150 mm |
| Environmental Conditions | |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to 60°C |
| Operating Humidity | 10% to 80% RH |
| Storage Humidity | 10% to 90% RH (paper excluded) |
Have a question?
FAQ
We are based in Gguangdong, China, start from 2020,sell to Western Europe(30.00%),Eastern Europe(20.00%),North America(10.00%),South America(10.00%).
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Of course, we hope you can order a sample to test the quality before ordering in bulk, which is safer for both of us, because you can try the product yourself and see if it meets your requirements.
We will try our best to offer 24/7 after sales service about our products.
Yes, we have a one-year warranty. If the whole product is defective and can't be used, we will send relevant accessories to you in your next order.
