- Sku:

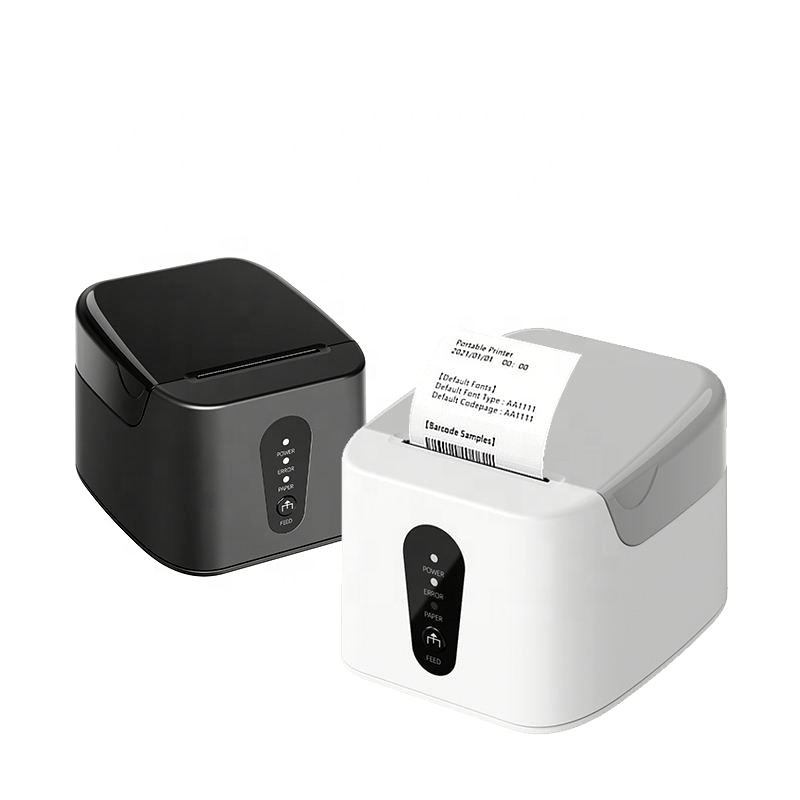

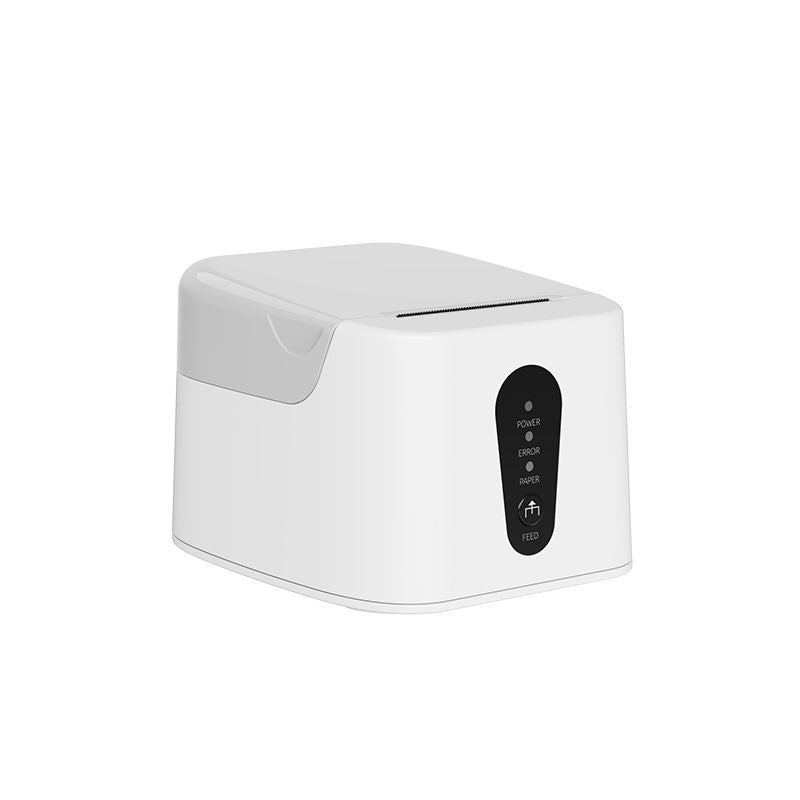

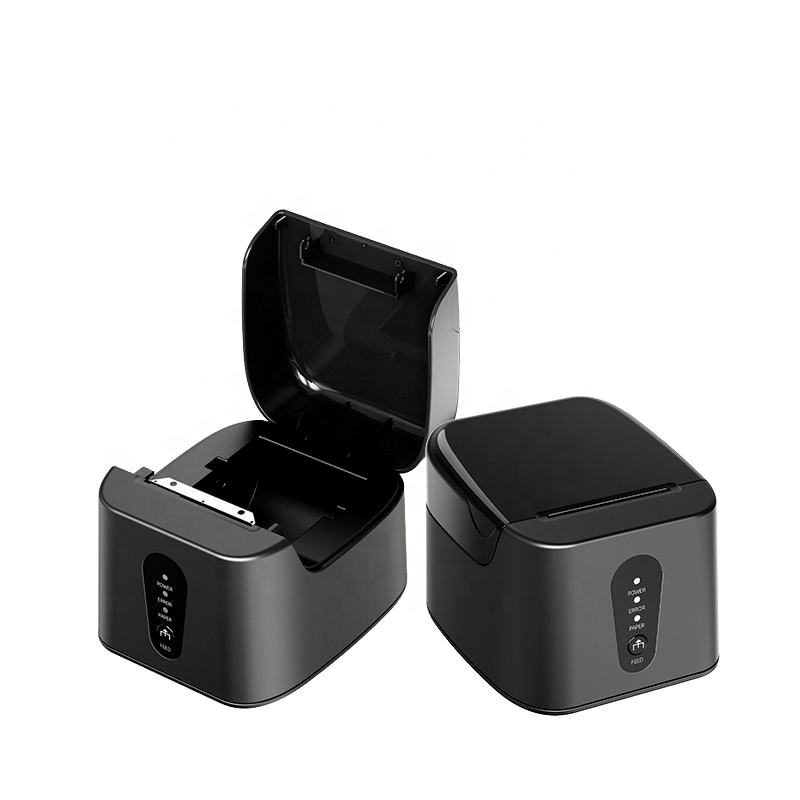

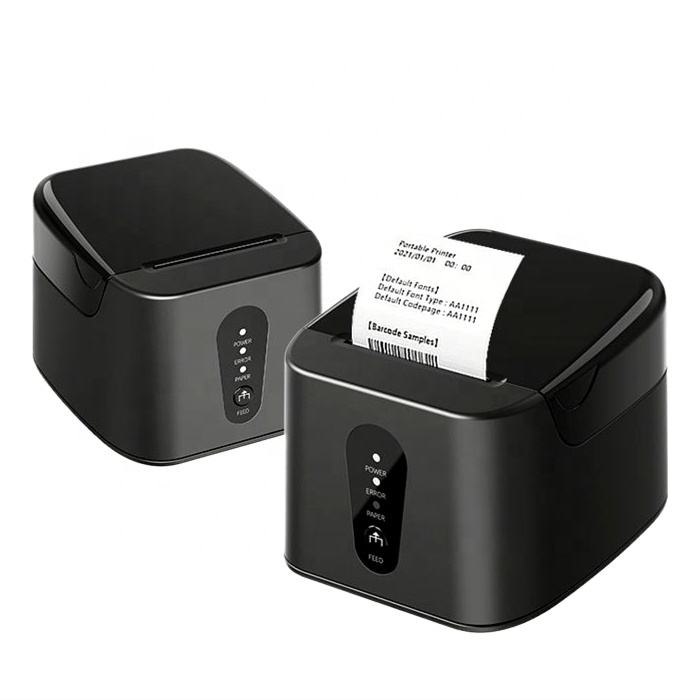

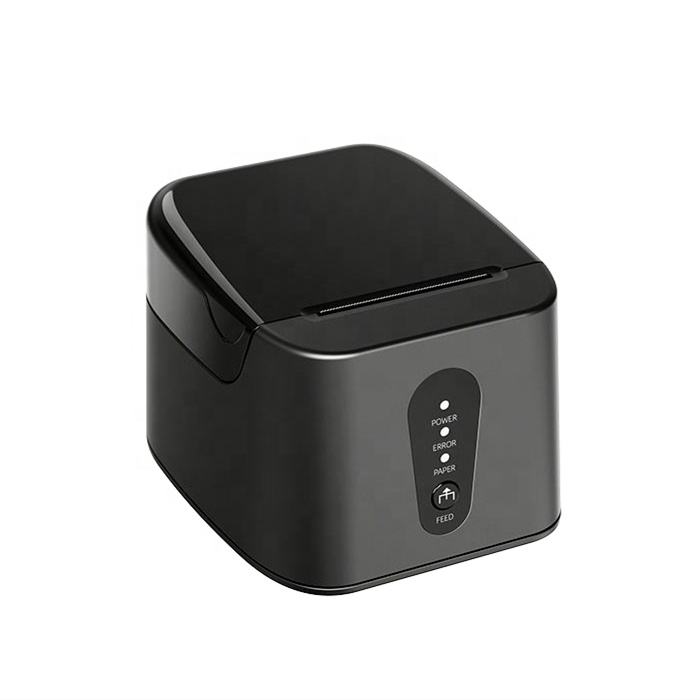

NBTP-5860 58mm Desktop Thermal Receipt Printer USB Printer For Bill ticket
| Specification | Details |
|---|---|
| General Information | |
| Model | NBTP-5860 |
| Product Name | 58mm Desktop Thermal Printer |
| Color | Black |
| Interface Options | USB (USB + Bluetooth optional) |
| Power & Connectivity | |
| Power Supply | Input: AC 100V-240V, 50-60Hz Output: DC 12V/3A |
| Cash Drawer Support | DC 12V/1A output for cash drawer |
| OS Compatibility | Windows, Linux, Android, iOS |
| Printing Performance | |
| Printing Method | Direct Thermal Line Printing |
| Print Resolution | 203 DPI (8 dots/mm), 384 dots/line |
| Print Speed | 160 mm/s (high speed) |
| Print Width | 58mm (standard receipt width) |
| Printing Commands | ESC/POS compatible |
| Printer Head Lifespan | 60 KM |
| Barcode & Media Support | |
| Supported Barcodes | UPC-A, UPC-C, EAN-13, EAN-8, CODE39, ITF, CODEBAR, CODE93, CODE128 |
| Paper Type | Thermal Roll Paper |
| Paper Width | 57.5±0.5mm |
| Paper Roll Diameter | Max 50mm |
| Paper Thickness | 0.06-0.07mm |
| Features & Sensors | |
| Paper Cutting | Manual Cutting |
| Sensors | Paper End Detection, Cover Open Detection |
| Physical Specifications | |
| Dimensions (W×D×H) | 133 × 113 × 93 mm |
| Weight | 1.52 kg (without paper roll) |
| Package Dimensions | 210 × 200 × 150 mm |
| Environmental Conditions | |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -10°C ~ 60°C |
| Operating Humidity | 10% ~ 80% RH |
| Storage Humidity | 10% ~ 90% RH (paper excluded) |
| Package Contents | |
| Accessories Included | Data cable, Power adaptor, Power cord, Paper roller, Installation CD, User manual |
