- Sku:

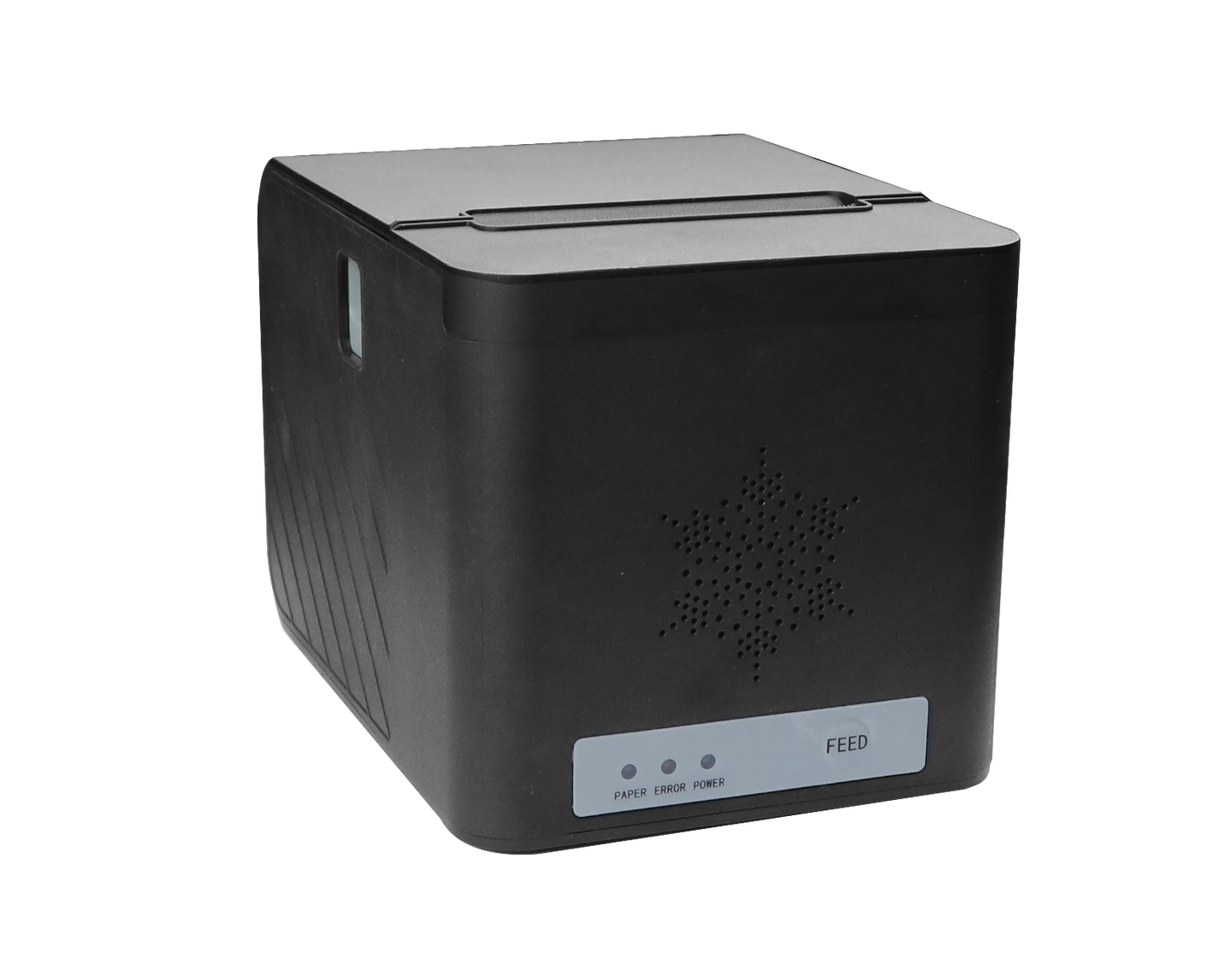

NBTP-8020 80mm desktop thermal printer with auto cutter
| Specification | Details |
|---|---|
| General Information | |
| Model | NBTP-8020 |
| Name | 80mm Desktop Thermal Printer with Auto Cutter |
| Color | Black |
| Interface & Power | |
| Optional Interface | USB / USB+LAN |
| Power Supply | Input: AC 100V-240V, 50-60Hz, Output: DC 24V/1.25A |
| Core Components | |
| Print Head Lifespan | 150 km (Extended durability) |
| Cutter | Auto cutter with 1 million times cutting capability |
| Sensors | Print head temperature detection, paper presence detection, open cover detection, paper jam detection |
| Accessories | |
| Included Accessories | Data cable, power adaptor, power cord, paper roller, Paper separator (optional) |
| OS Support | |
| Supported Operating Systems | Compatible with iOS, Android, Windows, Linux |
| Printing Capability | |
| Printing Method | Direct Thermal Line |
| Resolution | 8 dots/mm (203 dpi), 576 dots/line |
| Printing Speed | USB: 180mm/s, USB+LAN: 200mm/s (High-speed) |
| Print Width | 72mm / 48mm |
| Input Buffer | 128 kbytes |
| NV Flash | 256 kbytes |
| Graphics Printing | Supports bitmap download and print (each bitmap size Max. 20K) |
| Printing Command | Compatible with ESC/POS |
| Barcode Support | |
| Character Size |
ANK character, Font A: 12×24 dots, 1.5(W)×3.0(H) mm
Font B: 9×17 dots, 1.1(W)×2.1(H) mm
Simplified/Traditional: 24×24 dots, 3.0(W)×3.0(H) mm
Japanese/Korea: Optional
User-defined language: Support (optional)
|
| Media Specifications | |
| Paper Type | Thermal Roll Paper |
| Paper Width | 58mm / 80mm (optional) |
| Paper Separator | 58mm / 80mm (optional) |
| Paper Thickness | Max 80 mm × Ø80mm / Max 58 mm × Ø80mm |
| Paper Roll Diameter | 80 mm Max |
| Physical Characteristics | |
| Dimensions (W × D × H) | 165 × 120 × 119 mm |
| Weight | 3 kg |
| Package Box Dimensions | 300 × 250 × 250 mm |
| Environmental Conditions | |
| Operating Temperature & Humidity | 0°C to 45°C, 10% to 80% RH (Non-condensing) |
| Storage Temperature & Humidity | -20°C to 60°C, 10% to 90% RH (Non-condensing) |
