- Sku:

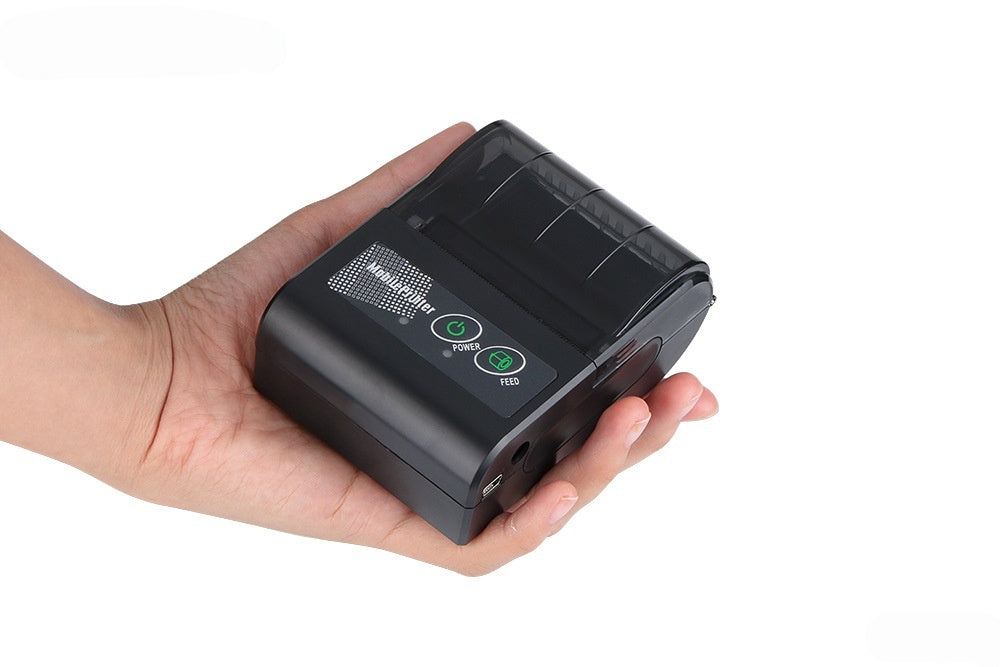

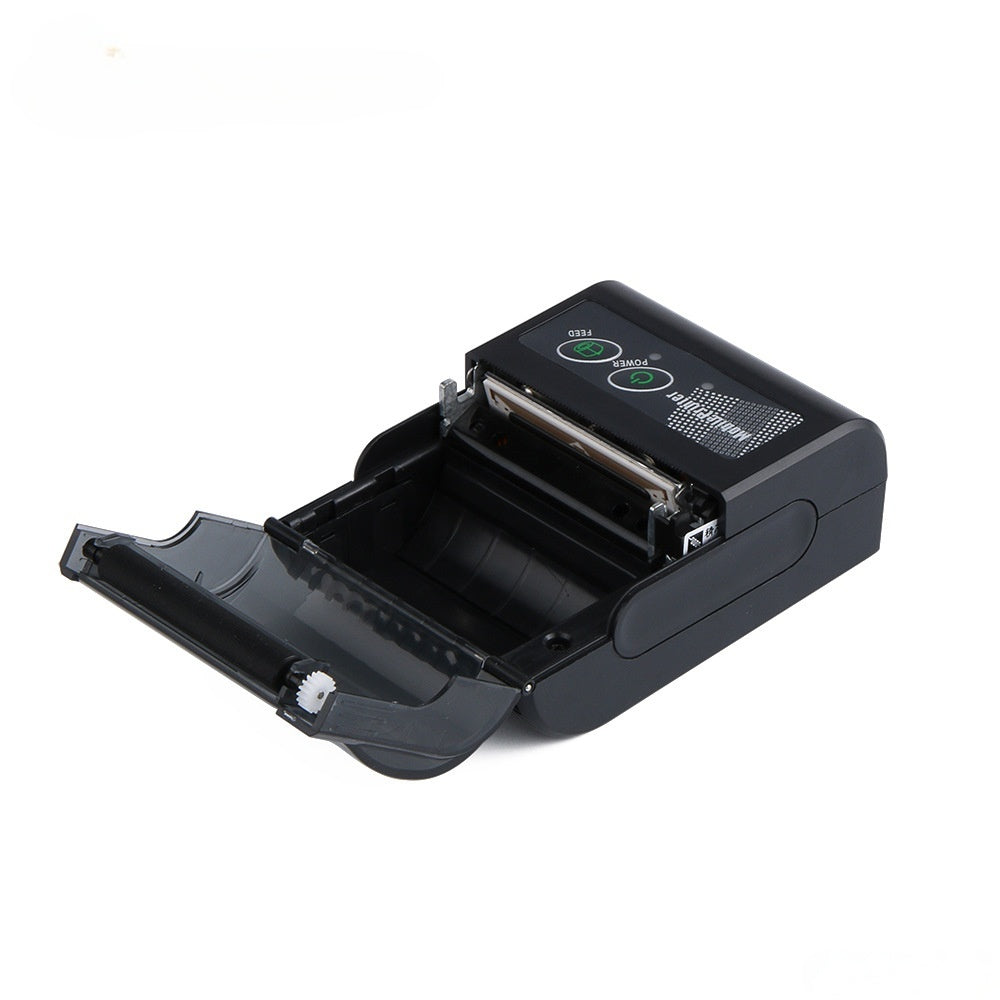

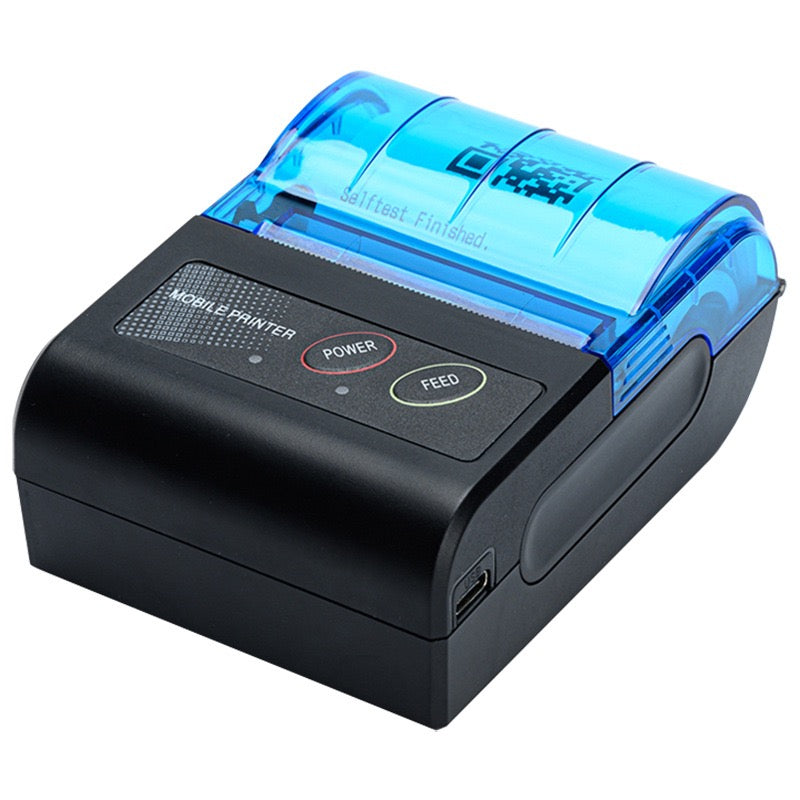

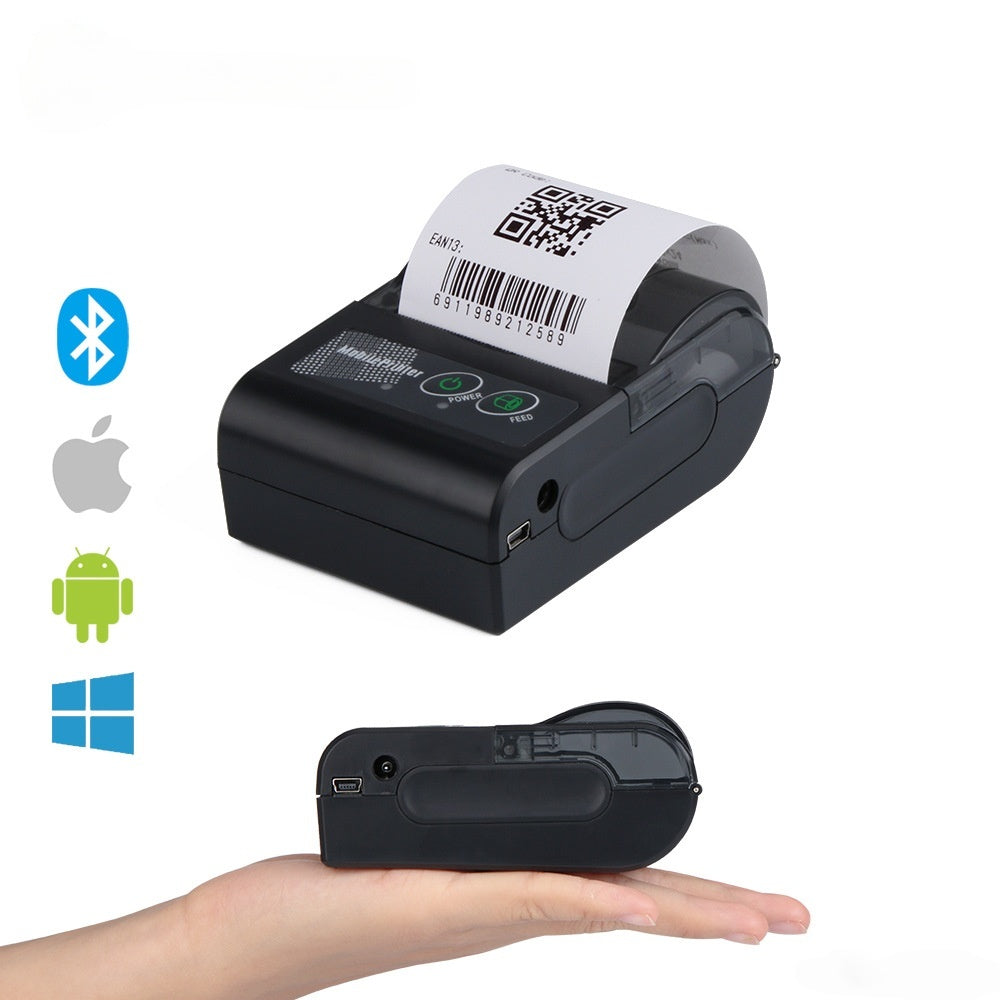

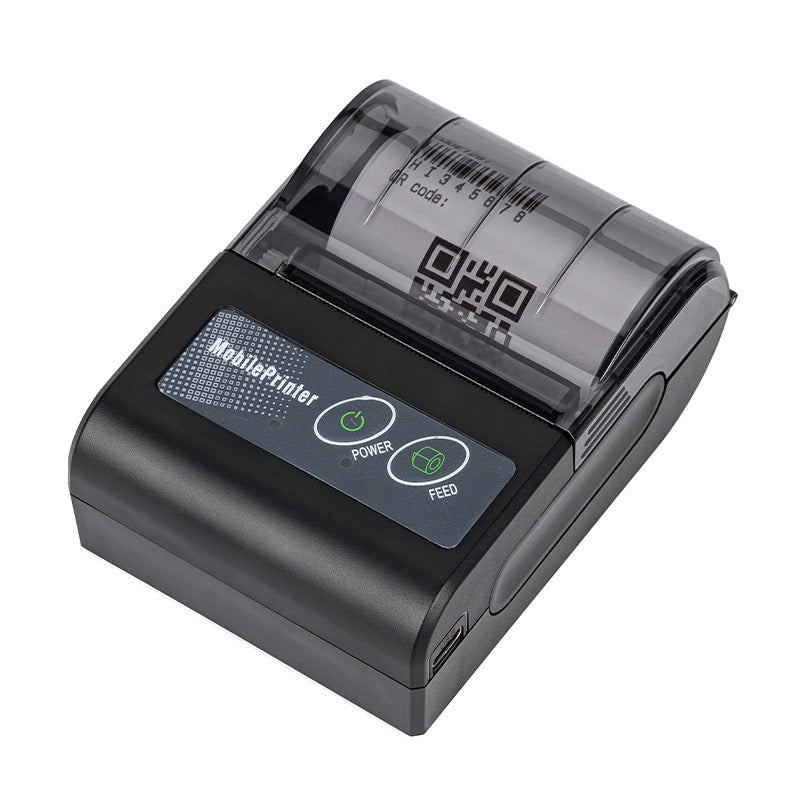

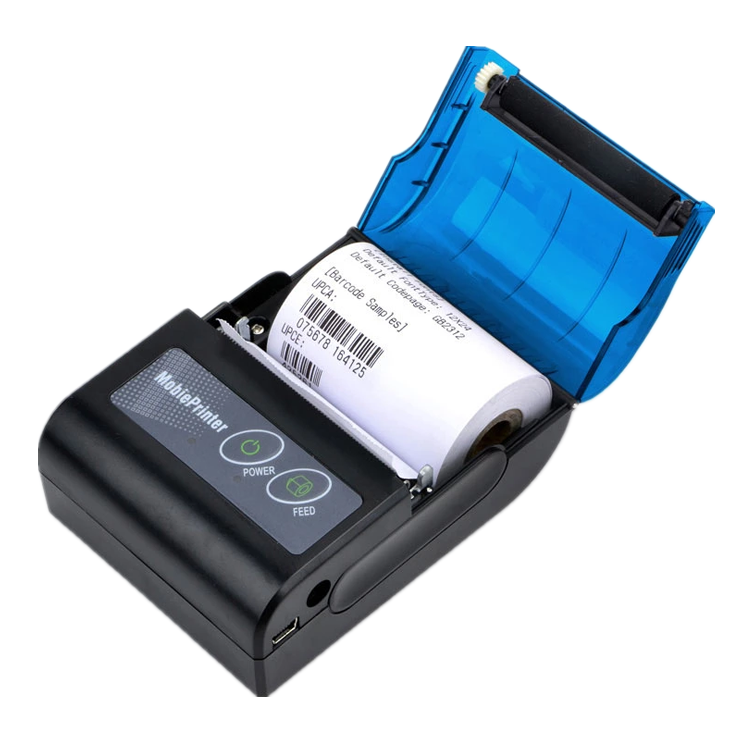

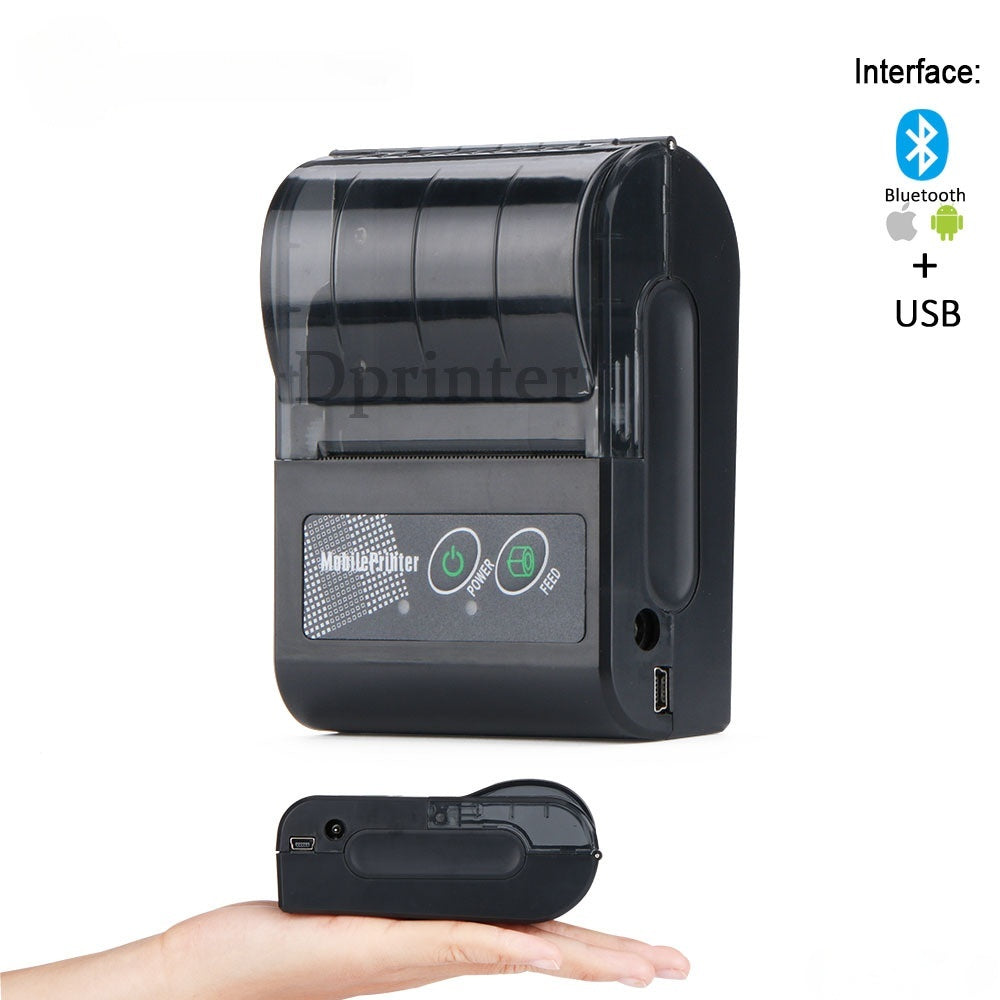

NBTP-M581 Mini 58mm BlueTooth Cloud Wireless Receipt Priner
| Specification | Details |
|---|---|
| General Information | |
| Model | NBTP-M581 |
| Name | 58mm Mini Thermal Printer |
| Color | Black and White |
| Connectivity & Power | |
| Optional Interface | USB + Bluetooth |
| Power Supply | DC 7.5V ±10%, 2A |
| Cash Drawer | DC 12V / 1A |
| Printer Specifications | |
| Printer Head Lifespan | 120 KM |
| Cutter | Manual Cutting |
| Sensors | Paper End, Cover Open |
| OS Support | Windows / JPOS / OPOS / Linux / Android |
| Printing Capability | |
| Printing Method | Direct Thermal Line |
| Resolution | 8 dots/mm (203 dpi), 384 dots/line |
| Printing Speed | 50 mm/s |
| Print Width | 48 mm |
| Print Font | Font A: 12×24; Font B: 9×17 |
| Printing Command | CPCL / TSPL command (ESC/POS command) |
| Barcode & Character | |
| Barcode Support |
1D Barcodes:
2D Barcodes:
|
| Media Specifications | |
| Paper Type | Thermal Roll Paper |
| Paper Width | 57.5 ± 0.5 mm |
| Paper Roll Diameter | 50 mm Max |
| Paper Thickness | 0.06 - 0.08 mm |
| Physical Specifications | |
| Dimensions | 103 × 76 × 46 mm |
| Weight | 2.3 kg (without paper roll) |
| Package Box | 180 × 130 × 90 mm |
| Accessories | |
| Included Accessories | Data cable, power adaptor, power cord, paper roller, CD, manual |
| Environment | |
| Working Temperature & Humidity | 0°C to 45°C, 10% to 80% RH (No condensation) |
| Storage Temperature & Humidity | -20°C to 60°C, 10% to 90% RH (No condensation) |
