- Sku:

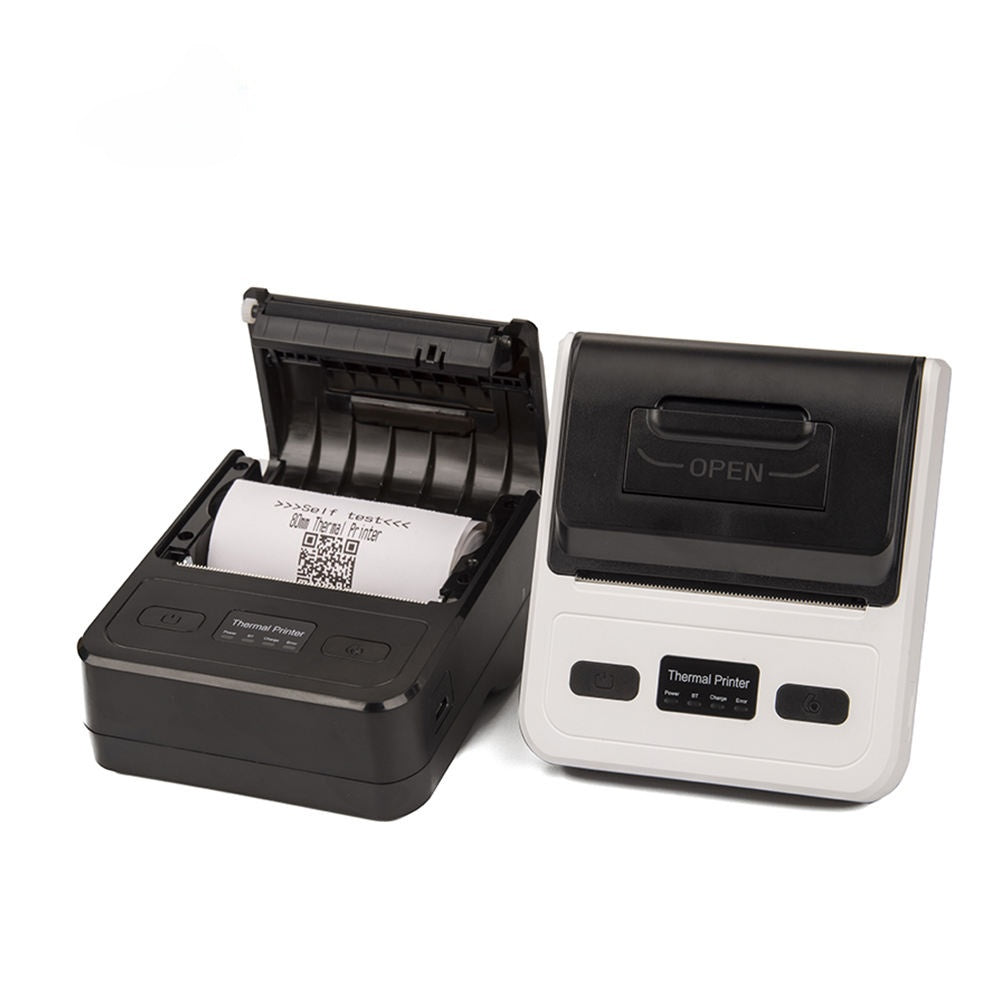

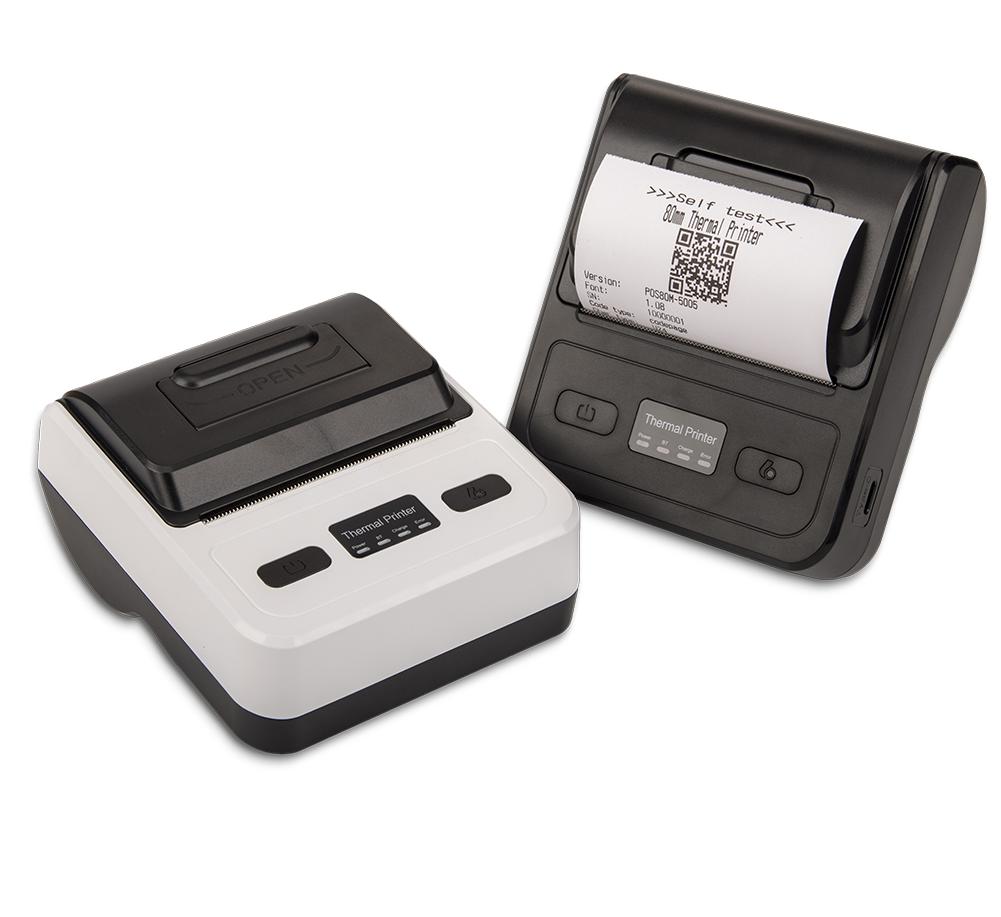

NBTP-M801 Mini Portable Thermal Printer with High Speed clear
| Specification | Details |
|---|---|
| General Information | |
| Model | NBTP-M801 |
| Name | Mini Portable Thermal Printer with High Speed Clear |
| Color | Black and White |
| Connectivity & Power | |

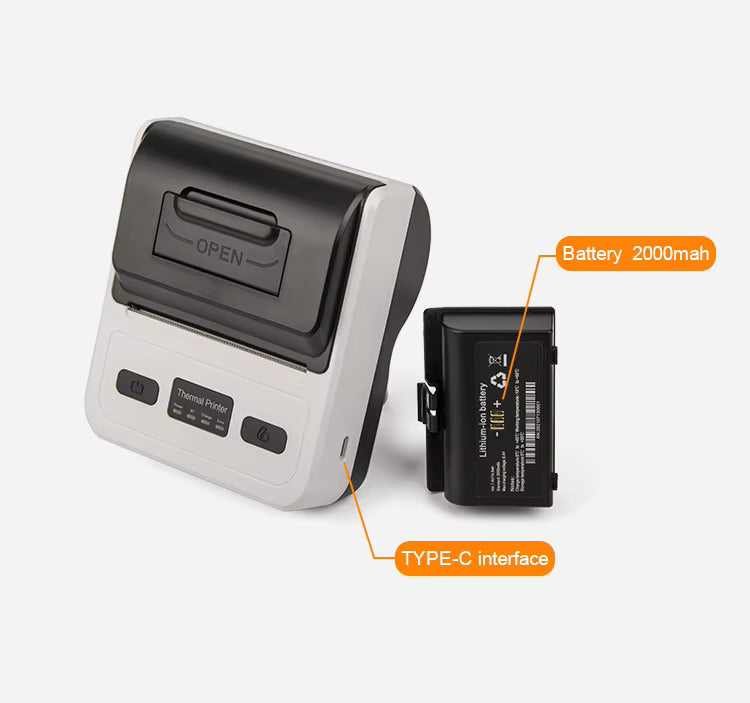

| Optional Interface | Bluetooth (Android + iOS), Type-C |
| Power Supply | Input: AC 100V-240V, 50-60Hz Output: DC 24V/1.25A |
| Printer Specifications | |
| Printer Head Lifespan | 80 KM |
| Cutter | Auto cutter with 1 million times |
| Sensors |
|
| OS Support | Compatible with iOS / Android / Windows / Linux |
| Printing Capability | |
| Printing Method | Direct Thermal Line |
| Resolution | 8 dots/mm (203 dpi), 576 dots/line |
| Printing Speed | 90 mm/s |
| Print Width | 80 mm |
| Input Buffer | 128 kbytes |
| NV Flash | 256 kbytes |
| Graphics Printing | Supports bitmap download and print (each bitmap size Max. 20K) |
| Printing Command | Compatible with ESC/POS |
| Barcode & Character | |
| Barcode Support |
1D Barcodes:
2D Barcodes:
|
| Character Size |
|
| Japanese/Korean | Optional |
| User-defined Language | Optional |
| Media Specifications | |
| Paper Type | Thermal Roll Paper |
| Paper Width | 80 mm (optional) |
| Paper Separator | 80 mm (optional) |
| Paper Thickness | Max 80 mm × Ø80 mm / Max 58 mm × Ø80 |
| Paper Roll Diameter | 80 mm Max |
| Physical Specifications | |

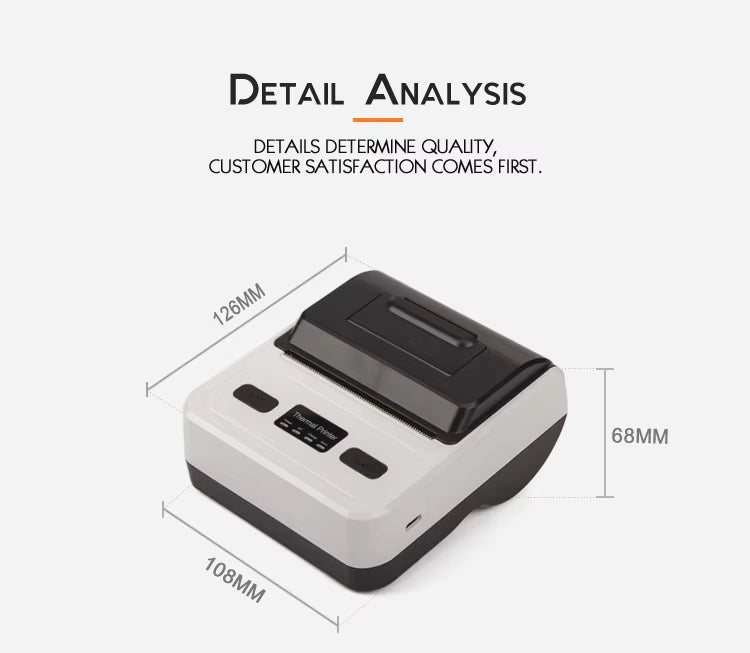

| Dimensions | 126 × 108 × 68 mm |
| Weight | 400 g |
| Package Box | 160 × 130 × 70 mm |
| Accessories | |

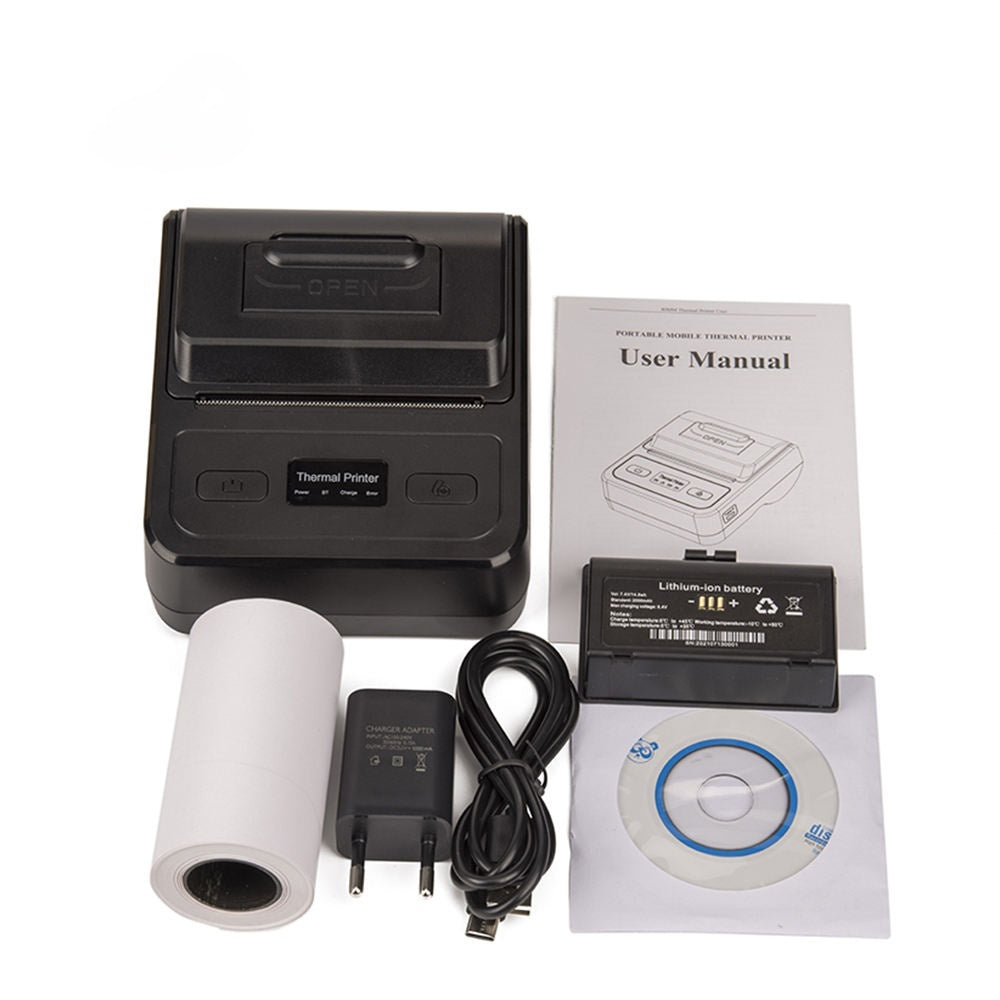

| Included Accessories | Data cable, power adaptor, power cord, paper roller, Paper separator (optional) |
| Environment | |
| Working Temperature & Humidity | 0°C to 45°C, 10% to 80% RH (No condensation) |
| Storage Temperature & Humidity | -20°C to 60°C, 10% to 90% RH (No condensation) |
